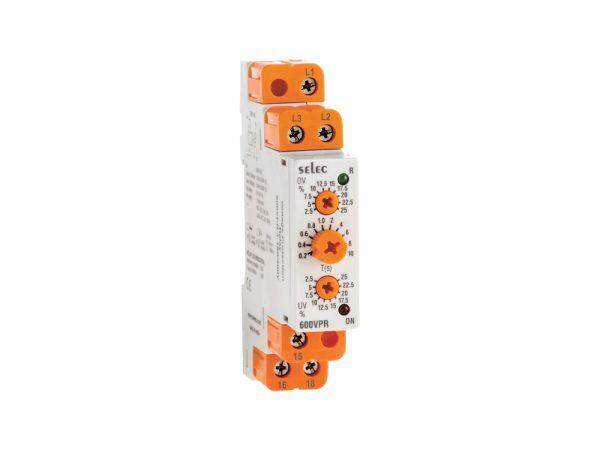

Selec 600VPR-1-130/320V-CE , voltage protection relay


600VPR-1-130/320V-CE Analog Voltage Protection Relay, a critical component for safeguarding your electrical systems. Priced at ₹771.00 (discounted from ₹909.78), this relay falls under the category of Analog Voltage Protection Relays, offering robust features for voltage monitoring and protection.

This relay is meticulously designed to monitor both under voltage and over voltage conditions. With a 1Ø-2W electrical connection, it’s suitable for single-phase, two-wire setups. The relay’s time ranges include trip delay (T) ranging from 0.25 to 20 seconds, ensuring that proper conditions are established before taking protective actions.

Accuracy is prioritized, with ±5% accuracy of Set Value and an additional ±100 milliseconds, providing precise voltage monitoring. The relay features a single C/O (SPDT) output contact, with NO (Normally Open) rating at 5A and NC (Normally Closed) rating at 3A, both at 250V AC.

Operating within an operating voltage range of 130V to 320V AC (Line to Neutral), the 600VPR-1-130/320V-CE ensures that your system remains within safe voltage limits. It features an auto-reset mechanism upon the removal of the fault condition, ensuring quick recovery.

Compact and versatile, the relay comes in a size of 17.5mm, designed for easy DIN rail mounting. With CE certification, the 600VPR-1-130/320V-CE Analog Voltage Protection Relay offers dependable voltage monitoring and protection, ensuring the stability and safety of your electrical systems.


Measuring Parameter Monitors under voltage and Over voltage
Electrical Connection 1Ø – 2W
Time Ranges Trip delay (T) : 0.25 to 20sec,
Power ON delay : <400msec
Accuracy ±5% of Set value ±100msec
Output Contact 1 C/O SPDT relay
Output Rating NO/5A, NC/3A@250V AC
Operating Voltage 130 to 320V AC (L-N)
Reset Auto reset on removal of fault condition
Size 17.5mm
Mounting Type DIN rail mount
Certification CE

Additional information

Weight 1 kg
