6kw , 220 vac ,SQ-33

1,500.00

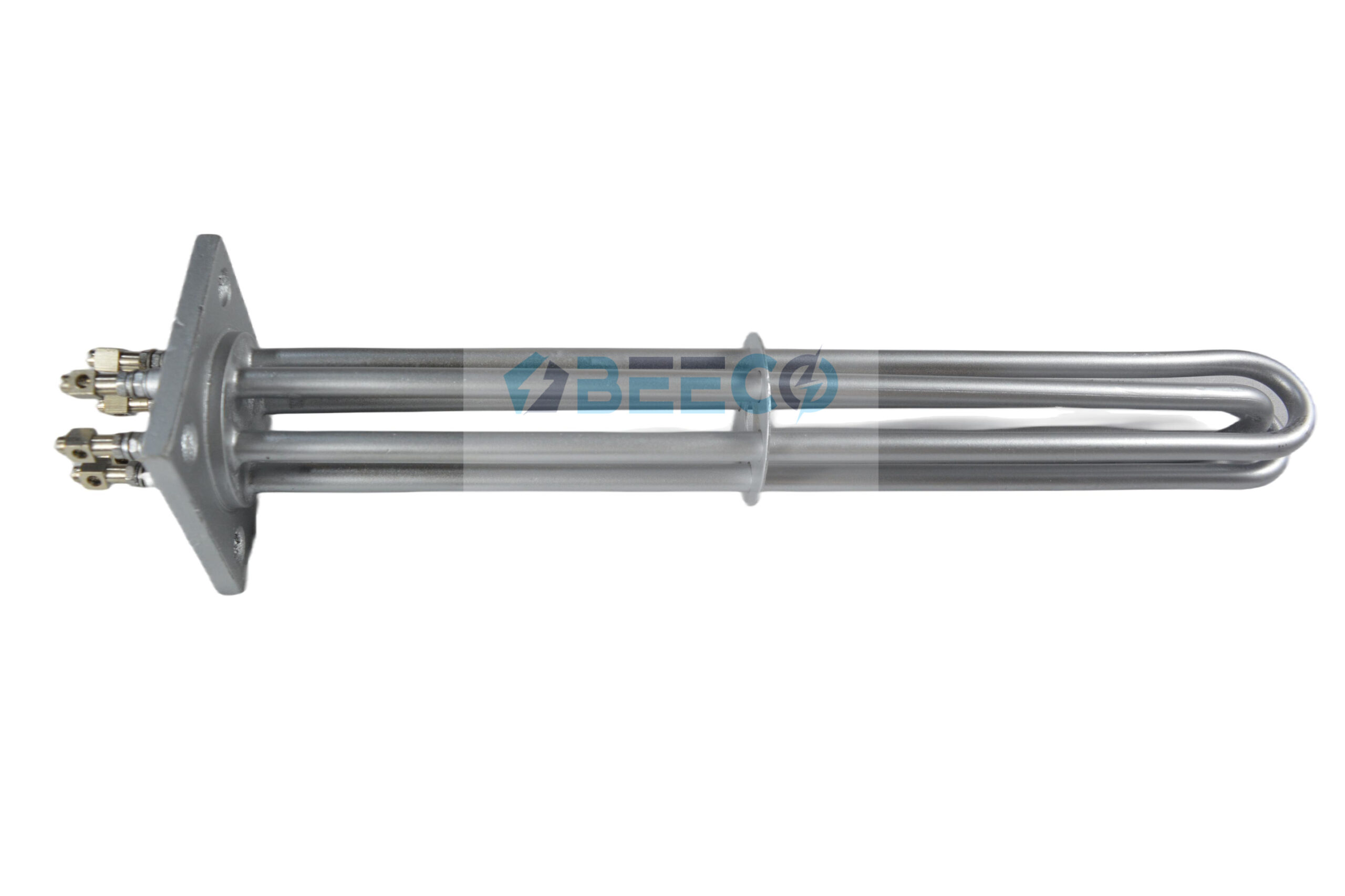

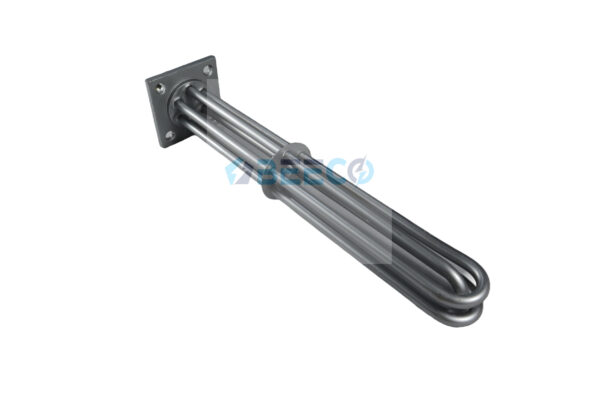

SQ-33 Water Immersion Heater, a high-performance solution engineered to excel in boiler and steamer applications. With an impressive 6 kW total power output (divided into three 2000 W elements) and compatibility with 220 VAC 3-phase supply, this immersion heater ensures efficient heat generation for your industrial needs.

The heater boasts an SS 321 heating element tube and SS 304 flange, both known for their durability and resistance to corrosion. The heating element’s 8.5 mm diameter and 320 mm length guarantee optimal heat transfer, while the 74 mm * 74 mm flange, with a thickness of 6 mm, ensures secure fitting.

Designed with attention to detail, the flange incorporates four holes with a diameter of 9.95 mm, spaced 62 mm apart. Proudly ISI marked, the Beeco SQ-33 Water Immersion Heater adheres to stringent quality standards.

Backed by a 1-year replacement warranty, this heater offers peace of mind for your investment. However, please note that the warranty does not apply if the heater is found in a molten state or if the heating element tube bursts.

Count on Beeco’s expertise to provide you with reliable, efficient, and enduring heating solutions that optimize your industrial processes. Experience consistent performance with the assurance of Beeco’s distinguished reputation for excellence.


Warning: Undefined array key "enable_rtb_widget" in /var/www/html/wp-content/plugins/woo-razorpay/woo-razorpay.php on line 2947

Description

WATER IMMERSION HEATER

BOILER /STEAMER

MOC : SS 321

FLANGE MOC : SS 304

HEATING ELEMENT TUBE DIA : 8.5 MM

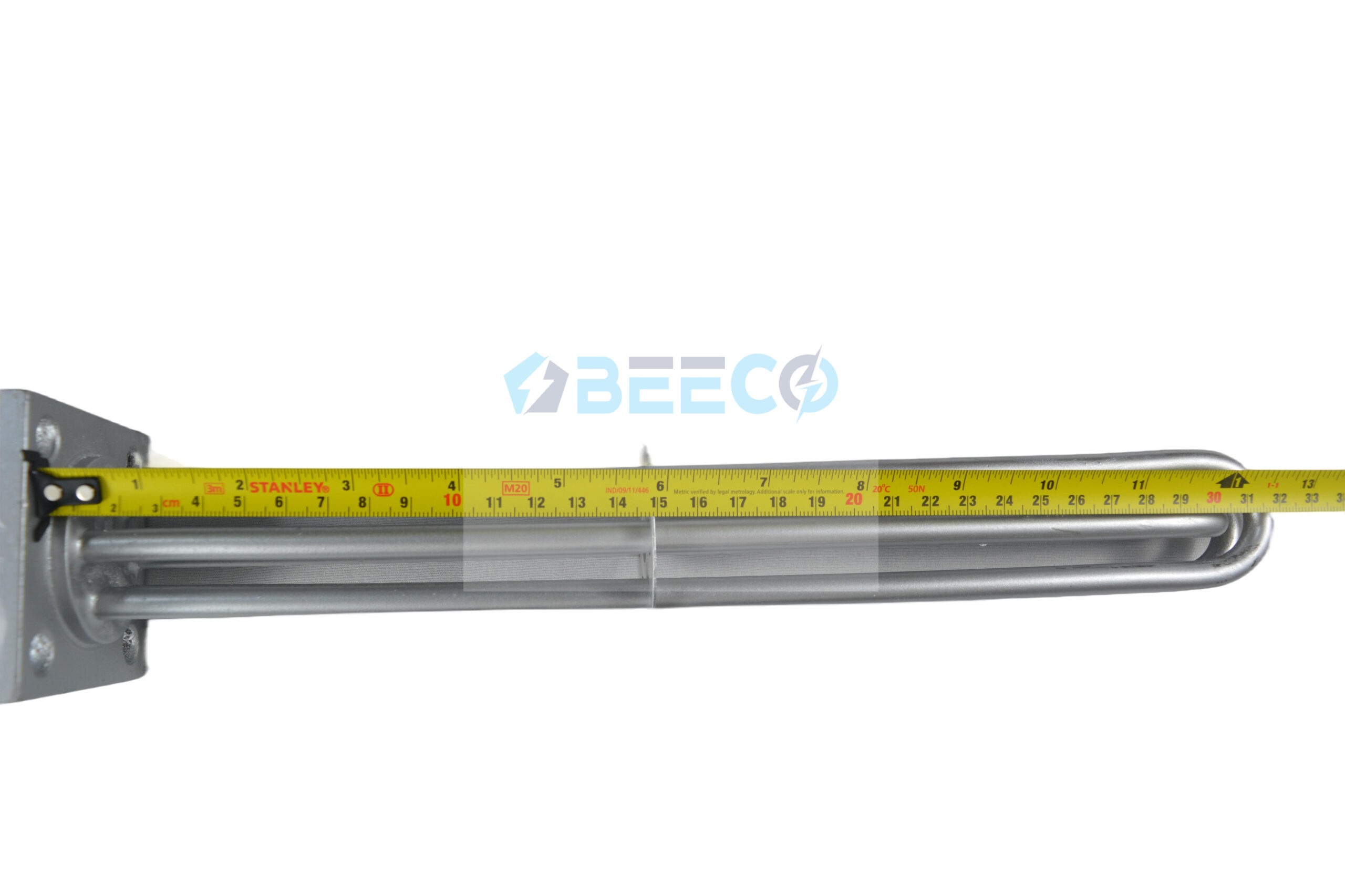

LENGTH OF HEATING ELEMENT : 320 MM

FLANGE DIMENSION : 74 MM * 74 MM

THICKNESS OF FLANGE : 6 MM

HOLE : 4 NOS

DIA OF HOLE : 9.95 MM

HOLE TO HOLE DISTANCE : 62 MM

WATT : 6000 TOTAL { 2000 W +2000 W +2000 W }

VOLT : 220 VOLT 3 PHASE



Warranty : 1 year replacement { not valid if found in molten state or tube burst }

MADE BY BEECO      ISI MARKED  4159



Additional information

Weight 2 kg
