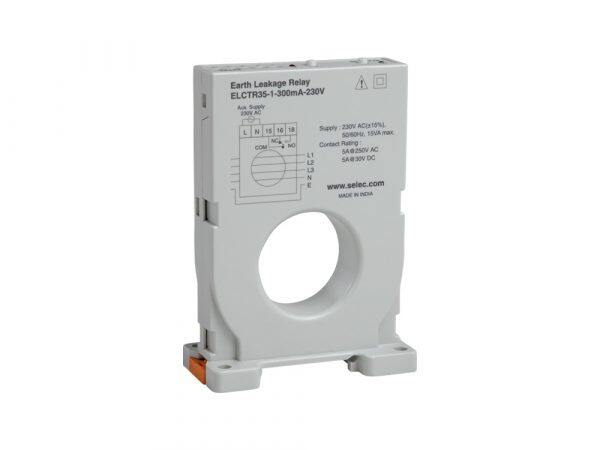

Selec ELCTR35-1-300mA-230V-CE


ELCTR35-1-300mA-230V-CE is an advanced monitoring solution designed to accurately measure and manage True RMS Earth Leakage Current in various electrical configurations. Equipped with a versatile electrical connection that supports 3Ø-4W, 1Ø-2W, and 3Ø-3W systems, this device ensures comprehensive monitoring across different setups.

With a trip setting at 75% of 300mA, the ELCTR35-1-300mA-230V-CE offers precise detection of earth leakage currents that deviate from the specified range. Its instantaneous reset time feature ensures rapid response to fault conditions, minimizing downtime and enhancing safety.

The accuracy of the ELCTR35-1-300mA-230V-CE is a key highlight, with trip accuracy of ±5% of the input current and time accuracy of ±5% of the response time. Its 1 C/O (SPDT) output contact with a rating of NO: 5A@250VAC and NC: 5A@30V DC adds to its reliability and flexibility.

Certified with CE, this device adheres to stringent quality and safety standards. Its compact size of 74mm and DIN Rail Mounting further enhance its ease of installation and integration into various electrical systems. The ELCTR35-1-300mA-230V-CE provides a dependable solution for effective earth leakage current monitoring and management.


Measuring Parameter Monitors True RMS Earth Leakage Current
Electrical Connection 3Ø-4W, 1Ø-2W, 3Ø-3W
Trip Setting 75% of 300mA
Time Ranges Reset Time: Instantaneous
Accuracy Trip: ±5% of Input Current, Time: ±5% of Response Time
Output Contact 1 C/O (SPDT )
Output Rating NO: 5A@250VAC, NC: 5A@30V DC
Supply Voltage 230V AC (±15%)
Size 74mm
Mounting Type DIN Rail Mount
Certification CE

Additional information

Weight 1 kg
