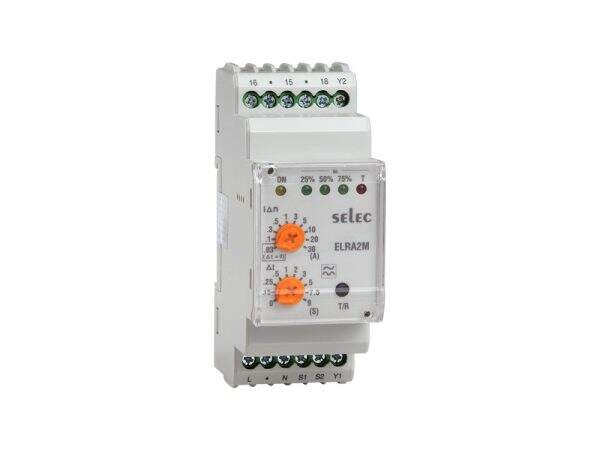

Selec ELRA2M2-1-230V-CE, Earth leakage relay


ELRA2M2-1-230V-CE is a cutting-edge True RMS Earth Leakage Current monitoring device designed to provide reliable protection against leakage currents up to 30A. It is capable of monitoring diverse electrical configurations, including 1Ø-2W, 3Ø-4W, and 3Ø-3W connections, ensuring comprehensive coverage for various applications.

The trip setting range of 30mA to 30A enables precise adjustment according to specific requirements. Its adaptable time ranges, with a trip time delay of 0 to 9 seconds (not applicable when In=0.03A), offer flexibility in tailoring the response to different scenarios.

Accuracy is a key feature, with trip accuracy of ±5% of Set Trip Current and time accuracy of ±5% of set time plus response time. This ensures reliable and precise detection of faults for enhanced safety.

The ELRA2M2-1-230V-CE incorporates a 1 C/O (SPDT) output contact with a rating of NO / 10A@277V AC / 28DC(1), providing a robust and versatile solution. With a compact size of 35mm, it is designed for DIN rail mounting, optimizing space efficiency.

With its CE certification and 230V AC (±15%) supply voltage compatibility, the ELRA2M2-1-230V-CE offers a high-quality Earth Leakage Current monitoring solution suitable for a wide range of applications, ensuring reliable and accurate protection.


Measuring Parameter Monitors True RMS Earth Leakage Current (upto 30A )
Electrical Connection 1Ø-2W, 3Ø-4W, 3Ø-3W
Trip Setting 30mA – 30A
Time Ranges Trip Time Delay: 0 to 9 sec (NA when In=0.03A)
Accuracy Trip: ± 5% of Set Trip Current,
Time: ± 5% of set Time + Response Time
Output Contact 1 C / O (SPDT )
Output Rating NO / 10A@277V AC / 28DC(1)
Supply Voltage 230V AC (±15%)
Size 35mm
Mounting Type DIN Rail Mount
Certification CE

Additional information

Weight 1 kg
