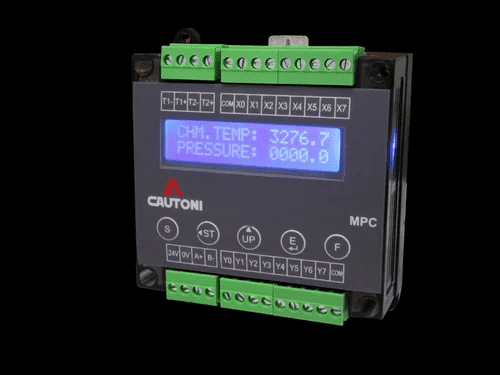

MPC-M8-R8-CS, Micro Programmable Logic Controllers
₹3,443.00
- Description
- Additional information
Description
This is Micro Programmable Logic Controllers , 32bit multitasking Processor, dual line programming Port RS-485 For PLC/Display,
Flexible 18points input/output , Ladder Programming , 24VDC Power Supply, Din-Rail Mounting , D/I : 8/12 Point (NPN / PNP Type) ,
D/O :8/12 Point (Transistor / Relay), TI/AI : 2 Point ( Temperature / Analog ), A/O : 4/8 Point (4-20mA / 0-10 VDC)
| Country of Origin | Made in India |
| Programming | LADDER PROGRAMMING |
| Model Name/Number | MPC-M8-R8-CS |
| Processor | 32 BIT MICRO PROCESSOR |
| I/O Points | 16 DIO, 24 DIO |
| Operation Temperature | 50*C |
| Program Language | LADDER |
| Output Type | Digital |
| Expandable Up To | 12 DI |
| Digital Inputs | 8 DI |
| Communication Port | RS-485 |
| Mini I O | 16 |
| Expansion | No |
| Warranty | 12 MONTHS |
| I Deal In | New Only |
| Place Of Origin | INDIA |
| Isolation | 1.2 KVA OPTO ISOLATION |
| Instruction Time | <0.01 MICRO SECOND |
| Program Memory | 512 K FLASH MEMORY |
| Number of Outputs | 8 / 12 RELAY OUTPUT |
| Number of Inputs | 8 / 12 DIGITAL INPUT |
| Display Type | 16X2 LCD DISPLAY |
| PLC Power | 24 VDC |
| Usage/Application | AUTOMATION |
| Brand | Cautoni-Beeco |
| Mounting Type | DIN Rail |
Additional information
| Weight | 1 kg |
|---|
