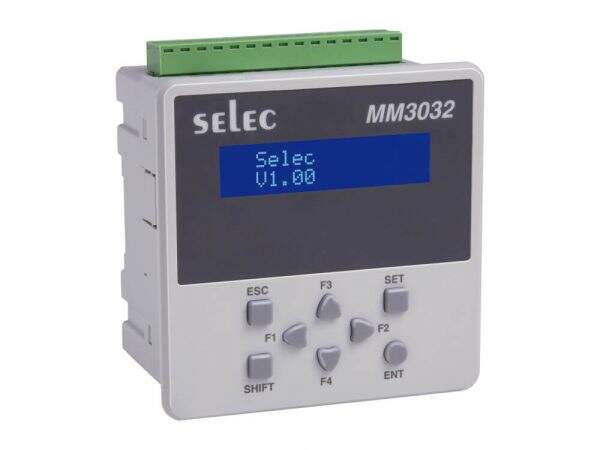

MM3032-2-0-0-230V V2

6,921.00

MM3032-2-0-0-230V V2 offers versatile control with a 2 x 16 Characters LCD with backlight and 8 user-configurable keys. Measuring 96 x 96mm, it’s compact yet functional. With 8 digital inputs (PNP Type), including 1 fast input channel, it handles multiple inputs. It features 2 analog inputs (0-20mA) and 6 relay outputs with a rating of 5A @230VAC / 24VDC.

It also includes 1 analog output channel (0-10V). While lacking RTC with Time Switch Function, it offers 240KB code memory and RS485 MODBUS RTU Protocol for communication. It supports a supply voltage range of 100-270V AC without retention and 180-270V AC with retention. Mounting options include panel or DIN rail, making installation convenient. It caters to various counting frequencies, with FC0 (I0 & I1) at 5KHz and normal digital inputs at 30Hz. In summary, the MM3032-2-0-0-230V V2 offers adaptable dimensions, diverse inputs/outputs, and efficient communication for precise control.

Description

Display Types 2 x 16 Characters LCD (With Backlight) + 8 Keys (6 User Configurable)
Size 96 x 96mm
Digital Inputs 8 (PNP Type) Including 1 Fast Inputs Channels
Analog Input 2 Channels ( 0-20mA)
Digital Outputs 6 Relay Outputs
Output Rating 5A @230VAC / 24VDC
Analog Outputs 1 Channel (0-10V)
RTC With Time Switch Function NO
Code Memory 240KB
Communication Interface RS485 Based MODBUS RTU Protocol
Expansion NO
Supply Voltage 100-270V AC without retention 180-270V AC with retention
Mounting Type Panel/DIN Rail
FI / Maximum Counting Frequency FC0 (I0 & I1) – 5KHz, Normal digital input: 30Hz

Additional information

Weight 1 kg
