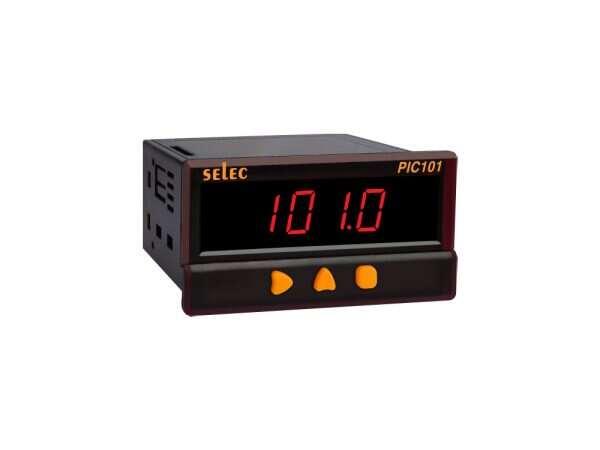

PIC101A-VI-230

871.00

PIC101A-T-230 is a reliable temperature measurement solution featuring a 7-segment LED single display with a configuration of 4 digits. Designed to accommodate various input types such as Thermocouples (J, K, T, R, S) and RTD (PT100), it offers selectable resolution options of 1 or 0.1 degrees for accurate temperature readings. The device ensures high precision, with TC accuracies of ±0.25% of full scale ±1 degree for J, K, T, R, and S types, and ±0.5% of full scale ±2 degrees (after 20 minutes of warm-up) for R and S types. For RTD inputs, accuracy is maintained at ±0.1% of full scale ±1 degree. The device operates on a 230V AC supply voltage with a ±20% tolerance, and its compact 48 x 96mm size makes it suitable for panel mounting.

Description

Display Type 7 Segment LED, Single Display
Display Configuration 4 digits
Type of Input 0 to 10V, 0/4 to 20mA
Resolution 1/0.1/0.01/0.001
Accuracy Signal input: ±0.5% of F.S,±1 digit
Supply Voltage 230V AC, ±20%
Size 48 x 96mm
Mounting Type Panel Mount

Additional information

Weight 1 kg
