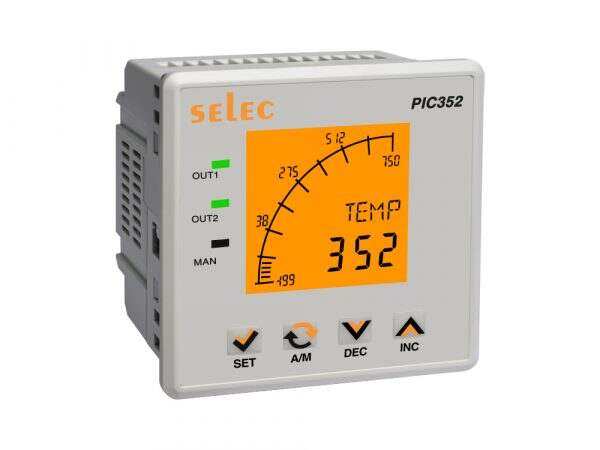

PIC352-11-U-0-1

5,000.00

PIC352-11-U-0-1 is an advanced temperature measurement and control solution with a dual 4-digit display accompanied by graphical representation. It supports a wide range of input types, including Thermocouples (J, K, T, R, S, C, E, B, N, L, U, W, Platinel II), RTD (PT100, PT1000), and various signal inputs within the range of -5mV to 90mV, 0-5/10V, and 0/4-20mA with programmable scale time. The device boasts 24-bit resolution at the analog input, with resolutions of 1/0.1 for TC/RTD and 1/0.1/0.01/0.001 for analog inputs. Its accuracy specifications are impressive, ranging from 0.1% to 0.25% of full scale at 25°C for different input types. Equipped with communication via RS485 MODBUS RTU protocol and offering versatile alarm modes, the PIC352-11-U-0-1 is a reliable choice for temperature monitoring. With a sensor supply of 24V DC and a wide supply voltage range of 90-270V AC/DC, this panel-mounted device is certified with CE and RoHS compliance.

Description

Display Type 4 Digits Dual display with Graphical Representation
Type of Input Thermocouple: J, K, T, R, S, C,E, B, N, L, U, W, Platinel II. RTD: PT100, PT1000, Signal Inputs: (DC) -5 to 90mV, 0 to 5/10V, 0/4 to 20mA (Programmable Scale Time)
Digital Input 4 DI’s
Resolution 24 bit resolution at Analog Input
1/0.1 for TC/RTD ; 1/0.1/0.01/0.001 for Analog Input
Accuracy For TC Input: 0.1% of full scale at 25°C ; For R & S input: 0.25% of full scale at 25°C ;
For RTD: 0.1% of full scale at 25°C ; For Current: 0.1% of full scale at 25°C ;
For Voltage: 0.1% of full scale at 25°C
Communication RS485 MODBUS RTU protocol
Alarm Modes Alarm High, Alarm Low, Band, Serr
Sensor Supply 24V DC, 30mA
Supply Voltage 90 to 270V AC / DC
Size 96 x 96mm
Mounting Type Panel Mount
Certification CE, RoHS

Additional information

Weight 1 kg
