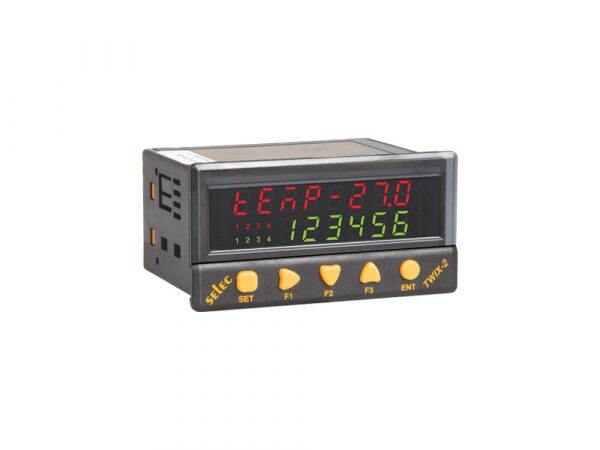

Selec , TWIX-2-230V
₹6,289.00
TWIX-2-230V embodies versatility with its (4 + 4) Red + 6 Green Digits LED Display and 4 Red + 4 Green LED indicators. Compact at 48 x 96mm, it efficiently utilizes space. It features 6 + 2* digital inputs (PNP Type), including 1 fast input channel, offering extensive input management. With 6* analog input channels, including 2 TC/RTD, 2 (0-10V), and 2 (0-20mA), it supports diverse sensor inputs. It provides 5 relay outputs with a rating of 5A @230VAC and 1 analog output channel (0-10V / 0-20mA).
Despite the absence of RTC with Time Switch Function, it offers 240KB code memory and RS485 MODBUS RTU Protocol for seamless communication. It operates on a supply voltage range of 100 to 270VAC / 18 to 30VDC, adapting to various power sources. Designed for panel mounting, it supports FC0 (I0 & I1) at 5KHz and normal digital inputs at 30Hz counting frequencies. In summary, the TWIX-2-230V presents a compact design, diverse inputs/outputs, and reliable communication for precise control.
- Description
- Additional information
Description
| Display Type | (4 + 4) Red + 6 Green Digits LED Display, 4 Red + 4 Green LED’s |
| Size | 48 x 96mm |
| Digital Inputs | 6 + 2* (PNP Type) Including 1 Fast Input Channel |
| Analog Inputs | 6* Channel (2 TC / RTD, 2 * (0-10V), 2 (0-20mA)) |
| Digital Outputs | 5 Relay Outputs |
| Output Rating | 5A @230VAC |
| Analog Outputs | 1 Channel (0-10V / 0-20mA) |
| RTC With Time Switch Function | No |
| Code Memory | 240KB |
| Communication Interface | RS485 Based MODBUS RTU Protocol |
| Expansion | NO |
| Supply Voltage | 100 to 270 VAC / 18 to 30 VDC |
| Mounting Type | Panel Mount |
| FI / Maximum Counting Frequency | FC0 (I0 & I1) – 5KHz, Normal digital input: 30Hz |
Additional information
| Weight | 3 kg |
|---|
