Selec ,TWIX-3-24VDC
₹4,660.00

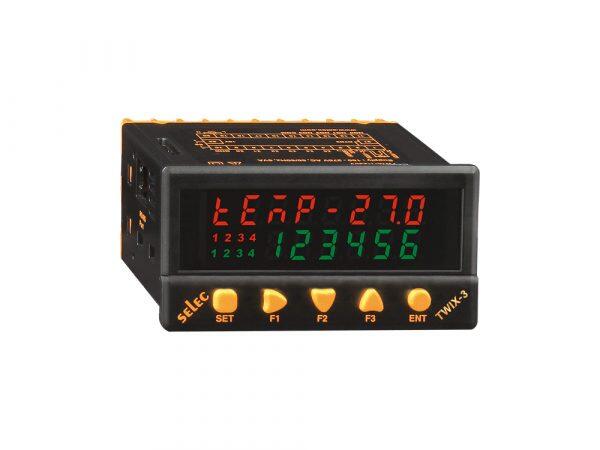

TWIX-3-24VDC model showcases a (4 + 4) Red + 6 Green Digits LED Display along with 4 Red + 4 Green LED indicators. With dimensions of 48 x 96mm, it boasts 8 digital inputs, including 1 Fast Input Channel. It accommodates 1 analog input channel for TC/RTD signals. This device offers 6 Transistor Outputs with an output rating of 100mA @24V DC. It lacks analog outputs and the RTC with Time Switch Function. With a code memory of 112KB, it communicates via RS485 Based MODBUS RTU Protocol. Designed for panel mounting, it operates on a supply voltage of 18 to 30 VDC, with a maximum counting frequency of 5KHz for specific inputs.
- Description
- Additional information
Description
| Display Type | (4 + 4) Red + 6 Green Digits LED Display , 4 Red + 4 Green LED’s |
| Size | 48 x 96mm |
| Digital Inputs | 8 (PNP Type) Including 1 Fast Input Channel |
| Analog Inputs | 1 Channel (TC / RTD) |
| Digital Outputs | 6 Transistor Outputs |
| Output Rating | 100mA @24V DC (Transistor) |
| Analog Outputs | NA |
| RTC With Time Switch Function | NO |
| Code Memory | 112KB |
| Communication Interface | RS485 Based MODBUS RTU Protocol |
| Expansion | NO |
| Supply Voltage | 18 to 30 VDC |
| Mounting Type | Panel Mount |
| FI / Maximum Counting Frequency | FC0 (I0 & I1) – 5KHz, Normal digital input: 30Hz |
Additional information
| Weight | 4 kg |
|---|
