S S Braded K type wire

1,400.00

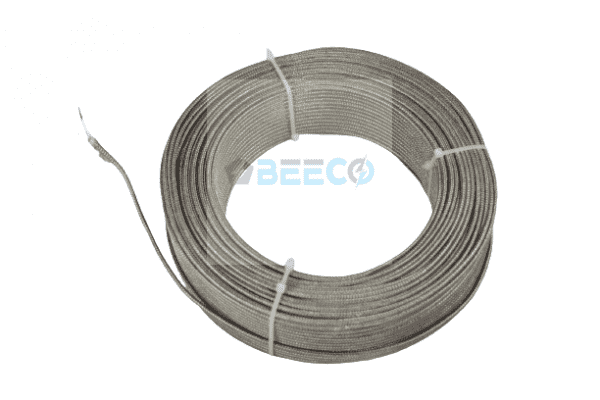

Type-K Thermocouple Compensating Cable, represented by model SF-K. Designed to meet medium-quality standards, this cable features a stainless steel braided construction with an inner layer of fiberglass. The conductor diameter measures 0.58 mm, while the overall outer cable diameter is 3 mm. Each roll contains 100 meters of cable, confirmed for consistent length. The cable conforms to Class 7/36 specifications, ensuring accurate temperature measurements. With a total roll weight of 1.441 kg, this Type-K compensating cable is a reliable choice for temperature sensing applications. Manufactured by Beeco, you can trust in its quality and performance for your projects.

Category:

Description

TYPE – K ,   TYPE COMENSATING     model : SF-K

QUALITY GRADE : MEDIUM

STAINLESS STEEL BRADED , INNER FIBRE GLASS

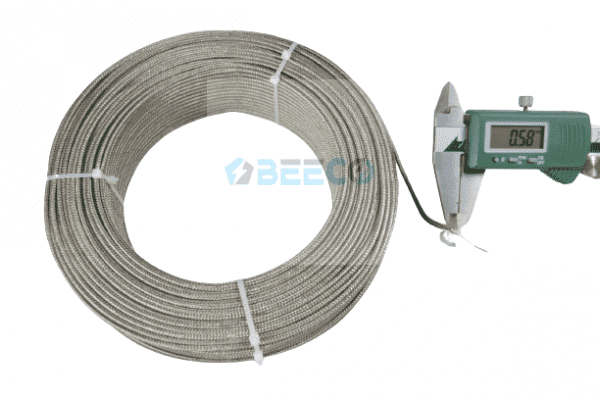

CONDUCTOR DIAMENTER : .58 MM

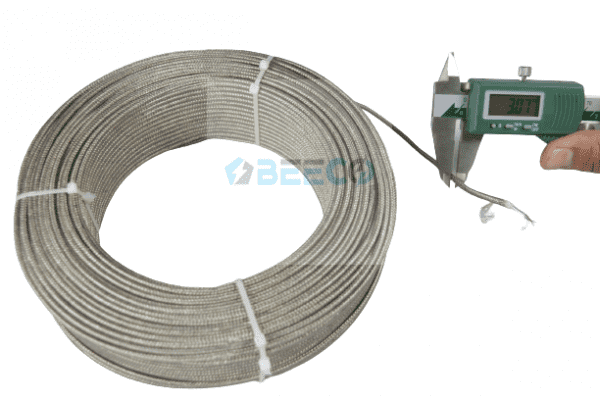

OVERALL OUTER DIAMTER OF CABLE : 3 MM

LENGTH OF ROLL : 100 MTR { confirmed }

CLASS: 7/36

WEIGHT OF ROLL : 1 KG 441 GM

MADE BY : BEECO

Additional information

Weight 2 kg
