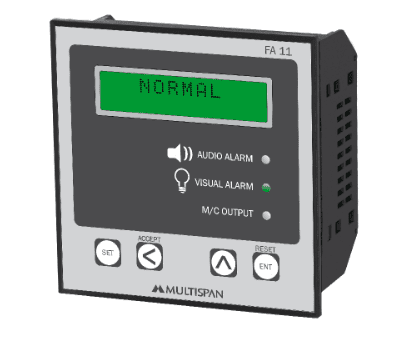

Multispan FA-11 Fault Annunciator Panel mount LCD
₹7,669.00
- Description
- Additional information
Description
This is Fault Annunciator Panel mount LCD and Model no is FA-11 . 16 X 2 LCD Display , User define 10 Channel fault inputs, potential-free contacts , With Audio , Visual and Machine trip relay output
Hard or Soft fault , RS-232 PC communication
| Model Name/Number | FA-11 |
| Pannel Cutout(mm) | 92×92 |
| Input | 10 Input Potential free contact |
| Output | 3 Relay 1C/O for audio alarm. Visual alarm & Machine Trip |
| Supply | 100-270V AC(SMPS), 50/60 Hz |
| Indication | 1. Audio Alarm 2. Visual Alarm 3. Machine Outp |
| Features | Fault Type NO or NC Confirgurable last 10 fault history saved in memory |
| Dimension(HxWxD) | 96X96X52 |
Note – RS 232 Serial PC Interfacing to define Soft/ Hard fault RS-485 Modbus is available as per reque
Usually dispatched within 4 working days
Warranty : 1 year cover { not valid if found fire burnt or damaged }
Additional information
| Weight | 1 kg |
|---|
