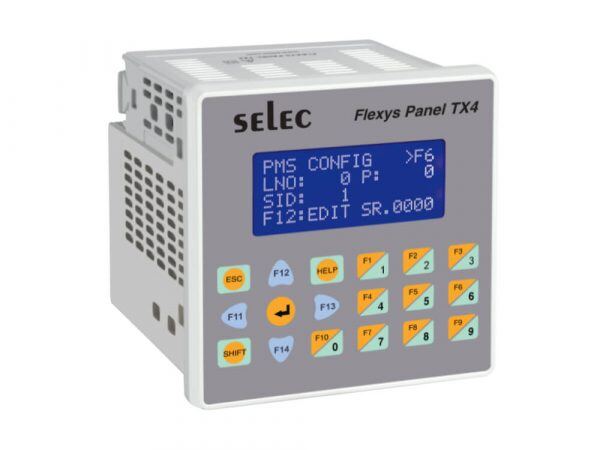

Flexys TX4 (FL-TX4-DI04-PS-24V-CE-RoHS)

1,777.00

Flexys TX4 (FL-TX4-DI04-PS-24V-CE-RoHS) is a compact yet versatile control solution. It features a 4 x 16 Characters LCD display with backlight and 18 keys, 14 of which are user-configurable, ensuring intuitive operation. Its dimensions of 99 x 99mm optimize space without compromising functionality. With 4 Digital Inputs on Power Supply Cards and expandability through various Flexys Card options, it adapts to diverse input needs. Supporting 4 slots for expansion, it caters to evolving requirements.

It offers an RTC with Time Switch Function, 351KB Code Memory, and communication interfaces including RS485-based MODBUS RTU Protocol and a proprietary protocol. Suitable for Panel Mounting, it operates with a supply voltage range of 100 to 230 VAC or 18 to 24 VDC. It accommodates both digital and analog I/O, with a maximum counting frequency of 5KHz on power supply cards and 30Hz for normal digital inputs.

Category:

Description

Display Type 4 x 16 Characters LCD (With Backlight) + 18 Keys (14 User Configurable)
Size 99 x 99mm
Digital Inputs 4 Digital Inputs On Power Supply Cards + As Per Flexys Card Selection
Analog Inputs As Per Flexys Card Selection
Digital Outputs As Per Flexys Card Selection
Analog Outputs As Per Flexys Card Selection
No. of Slots 4
RTC With Time Switch Function Available
Code Memory 351KB
Communication Interface RS485 Based MODBUS RTU Protocol, Proprietary Protocol
Expansion Yes
Supply Voltage 100 to 230 VAC / 18 to 24 VDC
Mounting Type Panel Mount
FI / Maximum Counting Frequency FC0 (I0 & I1) & FC1 (I2 & I3) – 5KHz (on power supply card only), Normal digital inputs – 30Hz

Additional information

Weight 1 kg
