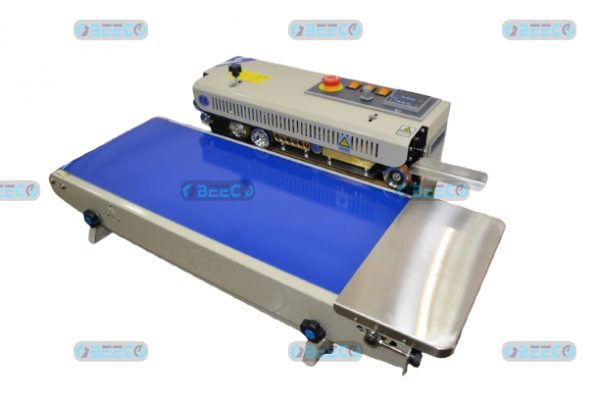

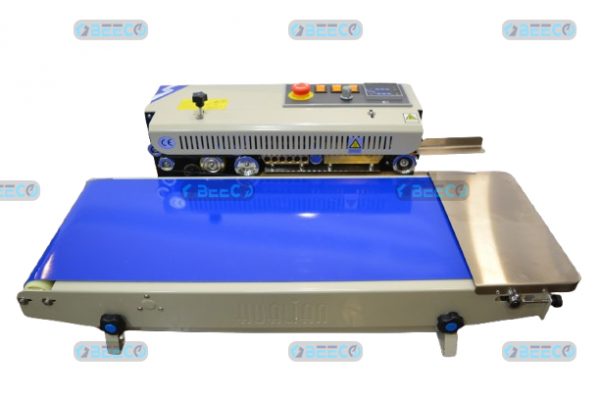

Broad Belt Band Sealer | Continuous Band Sealing Machine
₹35,600.00
Heavy-duty continuous band sealing machine with a broad conveyor belt for efficient sealing of a wide range of flexible packaging bags. Suitable for food, pharmaceutical, chemical, agricultural and industrial packaging applications.
- Description
- Additional information
Description
Industrial Continuous Band Sealer
SS304 Construction | 300 mm Wide Conveyor Belt | Horizontal & Vertical Configuration
The Beeco Electronics Industrial Continuous Band Sealer is designed for efficient and consistent sealing of pouches and flexible packaging materials in commercial and industrial packaging applications.
The machine features a 300 mm wide conveyor belt, providing a broad and stable conveying surface for packaged products during the sealing process.
Manufactured with SS304 stainless steel construction, the machine is designed for applications where durability, cleanability and corrosion resistance are important.
The continuous sealing system is designed for up to 8 hours of operation, making it suitable for regular production and packaging environments.
Key Features
- Industrial-quality continuous band sealer
- 300 mm wide conveyor belt
- SS304 stainless steel construction
- Designed for up to 8 hours of continuous operation
- 500W power
- 220V AC operation
- Adjustable sealing speed: 0–12 m/min
- Adjustable sealing width: 6–12 mm
- Available in horizontal or vertical configuration
- Attachments available according to application
- Suitable for pouch sealing
- Continuous automatic sealing
- Suitable for commercial and industrial packaging applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Type | Industrial Continuous Band Sealer |
| Body Material | SS304 Stainless Steel |
| Conveyor Belt Width | 300 mm |
| Power | 500 W |
| Voltage | 220V AC |
| Sealing Speed | 0–12 m/min |
| Sealing Width | 6–12 mm |
| Operation | Continuous |
| Designed Operating Period | Up to 8 hours |
| Configuration | Horizontal / Vertical |
| Attachments | Available |
| Application | Pouch & Flexible Package Sealing |
300 mm Wide Conveyor Belt
The machine is equipped with a 300 mm wide conveyor belt, providing a generous conveying surface for packaged products.
The wide belt design can provide improved support for larger, wider or heavier pouches during the sealing process.
It is suitable for applications where a conventional narrow-belt band sealer may not provide sufficient product support.
Continuous Band Sealing
The machine is designed for continuous sealing operations.
The pouch is placed on the conveyor and transported through the sealing section, where the packaging material is heated and sealed.
The adjustable conveyor/sealing speed allows the operator to select an appropriate operating speed according to the packaging material, pouch dimensions and sealing requirements.
Sealing Speed
0–12 metres/minute
Sealing Width
6–12 mm
Horizontal & Vertical Configurations
Horizontal Band Sealer
The horizontal configuration is suitable for products where the pouch is positioned horizontally during sealing.
Typical applications include:
- Food pouches
- Spices
- Grains
- Pulses
- Snacks
- Dry products
- General flexible packaging
Vertical Band Sealer
The vertical configuration is suitable for applications where the pouch needs to remain upright during sealing.
It can be used for suitable:
- Powder products
- Granular products
- Liquid-containing packages
- Chemical products
- Other flexible packaging applications
The appropriate configuration should be selected according to the product, package type and filling characteristics.
SS304 Stainless Steel Construction
The machine is manufactured with SS304 stainless steel construction, making it suitable for applications where durability, hygiene and corrosion resistance are important.
The stainless-steel construction also makes the machine easier to clean and maintain in appropriate packaging environments.
Designed for Continuous Operation
The machine is designed for up to 8 hours of continuous operation, making it suitable for regular commercial and industrial packaging requirements.
The continuous band-sealing system allows operators to process multiple pouches without manually heat-sealing each package individually.
Applications
The Industrial Band Sealer is suitable for sealing compatible flexible packaging used in:
- Food packaging
- Spices
- Snacks
- Grains
- Pulses
- Flour
- Dry fruits
- Agricultural products
- Pharmaceutical packaging
- Chemical packaging
- Industrial products
- General flexible packaging
Suitable Packaging Materials
The machine is suitable for compatible heat-sealable thermoplastic packaging materials, depending on material thickness and sealing characteristics.
Typical materials may include:
- PE
- PP
- Laminated films
- Plastic-lined bags
- Other compatible heat-sealable packaging materials
Why Choose Beeco Electronics?
300 mm Wide Belt
Provides a broad conveying surface for larger and heavier packages.
SS304 Construction
Suitable for applications requiring durable and cleanable stainless-steel equipment.
Continuous Operation
Designed for up to 8 hours of continuous production use.
Adjustable Sealing Speed
Speed adjustable from 0–12 m/min.
Adjustable Sealing Width
Sealing width of 6–12 mm.
Flexible Configuration
Available in horizontal or vertical configuration with suitable attachments.
Industrial Application
Designed for commercial and industrial pouch-sealing requirements.
Warranty
1-Year Warranty
Beeco Electronics provides a 1-year warranty against manufacturing defects under normal operating conditions.
Warranty Exclusions
The warranty does not cover:
- Physical damage
- Accidental damage
- Improper handling
- Damage caused by rodents or pests
- Damage caused by misuse
- Unauthorized modifications
Service
On-site service is not included.
Technical assistance/service will be provided according to the applicable service arrangement.
Additional information
| Weight | 50 kg |
|---|
