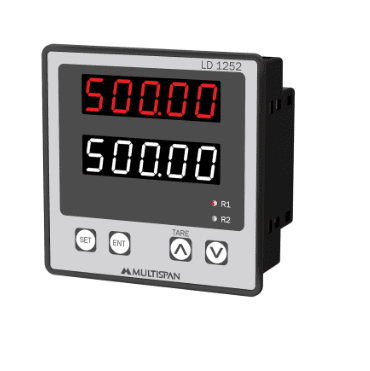

Multispan LD-1252 Load Cell Controller
₹3,053.00
- Description
- Additional information
Description
This is Load Cell Controller and Model no is LD -1252 . Input from load cell, please share load cell datashee , excitation supply for load cell . Retransmission output for SCADA or HMI . RS-485 Communication.
| Model Name/Number | LD-1252 |
| Pannel Cutout(mm) | 92×92 |
| Input | 0-20mV DC / 0-30mV Dc from load cell (Factory cell) |
| Analog Input | 0-10V DC / 4-20mA DC/ 0-20mA DC (Configurable) |
| Range | 0 to 99999 |
| Output | 1 Relay & 2 Relay (1 Relay by default) 10V DC@100mA DC load cell supply (by default) 0-10V DC / 4-20mA DC Retransmission RS-485 Modbus (Optional) |
| Accuracy | ±0.5% of FSD |
| Supply | 100 to 270V AC (SMPS), 50/60Hz |
| Dimension(HxWxD) | 96X96X54 |
Usually dispatched within 4 working days
Warranty : 1 year cover { not valid if found fire burnt or damaged }
Additional information
| Weight | 1 kg |
|---|
