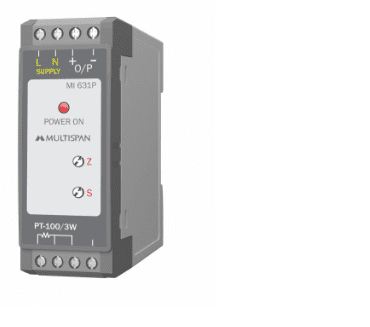

Multispan MI-631/ MI-631P/ MI-632 Signal Isolators
₹1,556.00 – ₹1,988.00
- Description
- Additional information
Description
This is Signal Isolators and Model no is MI-631/MI-632/MI-631P. Analog /Temperature/Voltage /Current/Resistance input , Analog output . With Dual output
| Model No | MI-631/MI-632/MI-631P |
| Mounting | Din rail mounting |
| Input | 4 to 20mA DC/ 0 to 10V DC/Pulse (factory Set) |
| Input | 0-20mA DC/4-20mA DC/0-10V DC /-5 to 5V DC/ 0 to 300V Ac Resistance 2 wire or 3 wire Port/Any Range in mV DC (Factory Set) |
| Sensor | PT-100 2Wire or 3Wire |
| Output | (0-20mA DC/4-20mA DC/0-10DC) Single or Dual output (Factory Set) |
| Accuracy | ±1% of FSD |
| Supply | 100-270V AC, 50/60 HZ or 24V DC (Facotry Set) |
| Dimension(HxWxD) | 76x27x85 |
Usually dispatched within 4 working days
Warranty : 1 year cover { not valid if found fire burnt or damaged }
Additional information
| Weight | 1 kg |
|---|---|
| size | MI-631, MI-631P, MI-632 |
