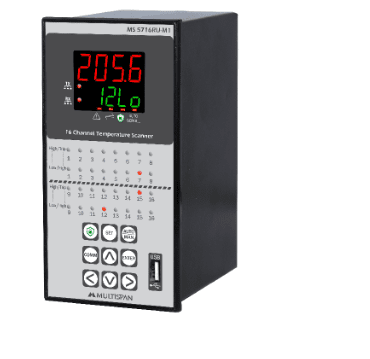

Multispan MS-5716R-M1 Temperature Scanner 16 Channel



This is Temperature Scanner 16 Channel and Model no is MS-5716RU-M1.    16 Channel input : TC or RTD ( request for analog input) , Datalogging in spreadsheet of PC  . Modbus RS-485 communication

Pen Drive slot for storing data from user end

Model Name/Number MS-5716RU-M1
Pannel Cutout 188X92
Input J/K/PT-100 2 wire or 3 wire
Analog Input 0-10V DC / 4-20mA DC/ 0-20mA DC (Configurable)
Range J(0° C to 400°C), K(0°C to 1200°C)
PT-100 2wire or 3 wire (-99.9°C to 400.0°C) (Temperature I/P)
(-99.9°C to 400.0°C)
Output 4 Relay wih grouping facility
RS-485 Modbus Communication (Optional)
USB port with Data Logging Facility (Optional)
Accuracy ±1% of FSD
Supply 100-270V AC, 50/60 HZ
Dimension(HxWxD) 192X96X165


Usually dispatched within 4 working days

Warranty : 1 year cover { not valid if found fire burnt or damaged }


Additional information

Weight 1 kg
