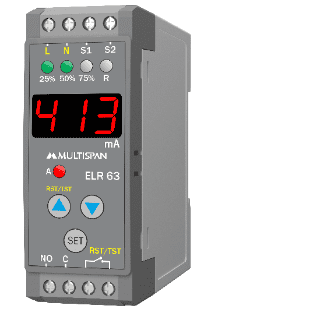

This is Earth Leakage Relay & Earth To Neutral Voltage  is model no is ELR -63 . 2 Line , 7 segment LED Display  . Input voltage range from 0 To 10V AC  . Earth To Neutral voltage Protection by relay tripping


Model Name/Number ELR-63
Pannel Cutout(mm) Din rail mounting
Input signal  30mA to 3AMP AC thru.external CBCT
Range 30mA to 3.00A AC
output 1Relay (No-C-NC)
5A,230V AC (Resistive load)
Accuracy class 0.5
Supply 100-270V AC(SMPS), 50/60Hz,Approx 4VA
Dimension(HxWxD) 76x28x85



Usually dispatched within 4 working days

Warranty : 1 year cover { not valid if found fire burnt or damaged }

Additional information

Weight 1 kg
