Multispan , MDT-2312F , Thumbwheel Timers

1,451.00

Category:

Warning: Undefined array key "enable_rtb_widget" in /var/www/html/wp-content/plugins/woo-razorpay/woo-razorpay.php on line 2947

Description

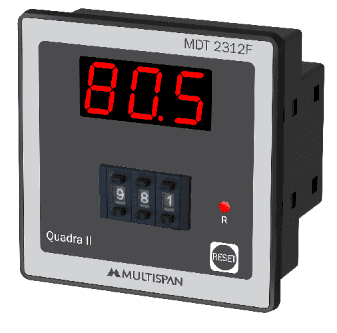

This is Thumbwheel Timers  and the Model no is MDT-2312F .    Single 7 Segment LED Display . Setting by thumbwheel . On-off Delay
Timer range – Sec/Min/Hours
1 output (Relay or SSR)



Model Name/Number MDT-2312F
Pannel Cutout(mm) 68×68
Input Star Pulse Micro Switch/Limit Switch/Proximity (Configurable)
Range  999/99.9/9.99/ Hour/Min/sec(Configurable)
Output 1 Relay 2C/O 5A,230V AC (Resisitve load) or SSR Drive O/P 12V max 20mA DC (Any onr Factory set)
Operation Mode Delayed On / Delayed OFF (Configurable)
Counting  Direction Up/Down (Configurable)
Memory  Yes/No (Configurable)
Supply 230V AC ±10%,50Hz
Dimension(HxWxD) 72x72x60





Usually dispatched within 4 working days

Warranty : 1 year cover { not valid if found fire burnt or damaged }

Additional information

Weight 1 kg
