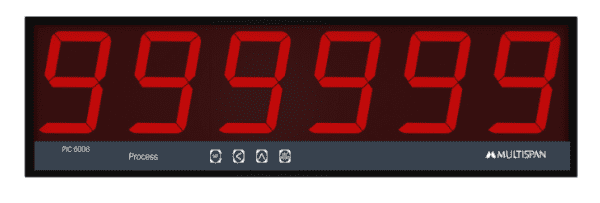

Multispan , PIC-6006(single side) , Jumbo Display Counter 6 digit 4 inch height Bright Red display

14,062.00

Category:

Description

This is Jumbo Display Counter 6 digit 4 inch height Bright Red display and the model no is PIC-6006 (single side) .  JUMBO Display for large factory area indication . Single Display . 7 Segment 6 Digit , 4″ RED LED Display  . Proximity and Micro Switch I/P  . Relay / SSR O/P
RS-485 ModBus Communication ( Optional )



Model Name/Number PIC-6006(single side)
Dimension (HxWxD)  160x570x50
Display Single display:7 segment , 6digit , 4″red led display
Sensor NPN/PNP Proximity switch & macro switch (Configurable)
Range 0-999999 count
output 1 relay 1C/O 5A, 230V AC (Resistive load) or SSR Drive O/P 12V DC, 20mA (Optional)
Memory Non-Volatile Memory
Reset Auto/ Manual reset /Back reset
Supply 100-270V AC (SMPS), 50/60Hz





Usually dispatched within 4 working days

Warranty : 1 year cover { not valid if found fire burnt or damaged }

Additional information

Weight 1 kg
