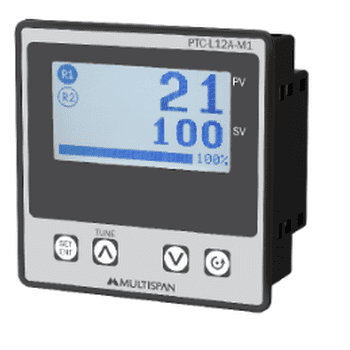

Multispan PTC-L12A-M1 PID Controller Analog I/O , Modbus

4,144.00


Warning: Undefined array key "enable_rtb_widget" in /var/www/html/wp-content/plugins/woo-razorpay/woo-razorpay.php on line 2947

Description

This is PID Controller Analog I/O , Modbus and Model no is PTC-L12A-M1 .  Brighter graphical LCD Display for operation ease  . Universal input TC / RTD / Standard Analog    . PID/ON-OFF
Auto /Self tuning  . 3 set point (Relay / SSR/ Analog controlling output)
RS-485 MODBUS / Retransmission output

Model Name/Number PTC-L12A-M1
Pannel Cutout(mm)  92×92
Input Sensor J/K/PT-100 2Wire or 3Wire, 0-10V/ 4-20mA/0-20mA (Configurable)
Range  J(0°C to 600°C), K(0°C to 1200°C), PT-100 2 Wire or 3 Wire
(-99° to 400.0°C, -99.9 to 400.0°C) for Temperature Sensor,
(-999 to 9999 for Analog Input )
Output 1 relay 1C/0 5A,230V AC (resistive load) or SSR Drive O/P 12V DC, 20mA
(Factory Set)
1 Relay 1C/ 0 5A, 230V AC (resistive Load) or SSR Drive O/P 12V DC , 20mA(Factory Set)
PC Communication – Rs-485 Modbus Comminication (Optional)
Supply 100-270V AC, 50/60 Hz
Accuracy ±1% of FSD
Control Action PID / ON-OFF (Configurable)
Dimension(HxWxD)  96x96x52



Usually dispatched within 4 working days

Warranty : 1 year cover { not valid if found fire burnt or damaged }

Additional information

Weight 1 kg
