Description

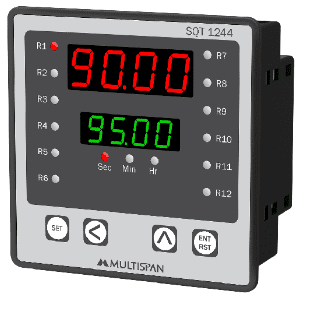

This is Sequence Timer 12 channel ,  and the Model no is SQT-1044(Combination Timer)  .  Dual 7 Segment LED Display. Up to 12 Channel . Cascading facility in 4 / 8 Channel . LED Indication for each channel and timer range . Timer range – Sec/Min/Hours

Model Name/Number SQT-1044(Combination  Timer)
Pannel Cutout(mm) 92×92
Input Sensor Humidity Sensor
Range  99.99Sec/999.9 Sec/99.59 Min/999.9 Min/99.59 Hrs/999.9 Hrs (Configurable)
Output  8 Relay/12 Relay 1C/O 5A,230V AC (Resistive load) or
SSR Drive O/P 12V DC ,20mA Output (Any one factory set)
Control Direction Up/Down (Configurable)
Memory  Yes/No (Configurable)
Supply 100-270V AC (SMPS),50/60 Hz
Reset Front&Backl Both Reset Avaible
Dimension(HxWxD) 96x96x52



Usually dispatched within 4 working days

Warranty : 1 year cover { not valid if found fire burnt or damaged }

Additional information

Weight 1 kg
