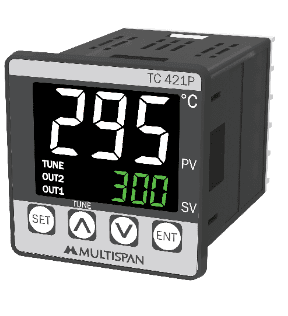

This is Single Output Fixed Input PID Controller and the Model no is TC-421P .   3 + 3 Digit , 7 Segment LED Display . Fixed Input J Type . PID/ON-OFF
Auto /Self tuning


Model Name/Number TC-421P
Pannel Cutout(mm) 45×45
Input Sensor J Type
Range  j (0°C to 600°C),K (0°C to 900°C)
PT-100 2wire or 3wire (-99°C to 400.0°C)
Output 1 Relay 1C/O 5A,230V AC (resistive load) & SSR 12V DC, 30mA (Parallel to Relay)(1 set point)
Control Action PID / ON-OFF (Configurable)
Accuracy ±1% of FSD
Supply 100 to 270V AC , 50/60HZ
Dimension(HxWxD)  48x48x70


Usually dispatched within 4 working days

Warranty : 1 year cover { not valid if found fire burnt or damaged }

Additional information

Weight 1 kg
