Description

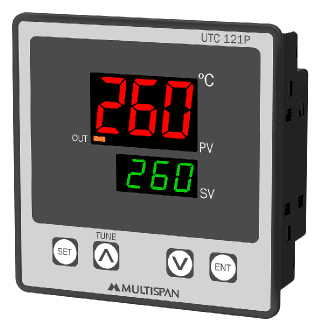

This is Single Output PID Controller and the Model no is UTC-121P .   3 + 3 Digit , 7 Segment LED Display . Universal input TC/RTD . PID/ON-OFF . Auto /Self tuning.
Heating PID / Cooling (Relay || SSR)



Model Name/Number UTC-121P
Pannel Cutout(mm) 92×92
Input Sensor J/K/PT-100 2W/3W (Configurable)
Range  j (0°C to 600°C),K (0°C to 900°C)
PT-100 2wire or 3wire (-99°C to 400.0°C)
Output 1 Relay 1C/O 5A,230V AC (resistive load) & SSR Drive O/P 12V DC, 20mA (Parallel to Relay)(1 set point)
Control Action PID / ON-OFF (Configurable)
Accuracy ±1% of FSD
Supply 100 to 270V AC , 50/60HZ, Approx 4VA
Dimension(HxWxD)  96x96x52



Usually dispatched within 4 working days

Warranty : 1 year cover { not valid if found fire burnt or damaged }

Additional information

Weight 1 kg
