Description

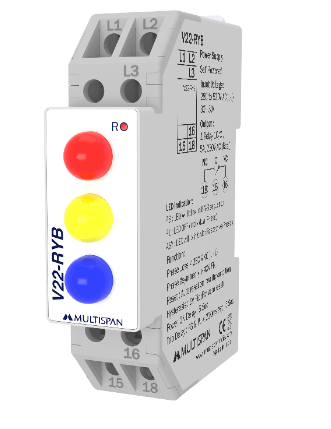

This is V22-RYB (Voltage Protection Device) and the model no is V22-RYB.
| Model Name/Number | V22-RYB (Voltage Protection Device) |
| Mounting | Din rail mounting |
| Input | Input Voltage : 280 to 520V AC (L-L), 3∅3 Wire |
| output | 1 Relay ,5A,230V AC (Resistive load) |
| Tripping Parameter | Phase Asymmetry Phase sequence Phase Loss |
| Power Supply | Self Powered |
| Dimension(HxWxD) | 90×22.5×72 |
Usually dispatched within 4 working days
Warranty : 1 year cover { not valid if found fire burnt or damaged }
Additional information
| Weight | 1 kg |
|---|
