Multispan VMR-13 / VMR-23 Voltage Monitor Relay


SKU: N/A Category:

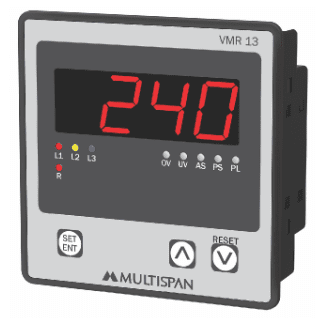

This isVoltage Monitor Relay and the model no is  VMR-13/ VMR-23.


Model Name/Number VMR-13  / VMR-23
Pannel Cutout(mm) 92×92  /68×68
Input signal 3 ∅ 4 Wire/3∅3 Wire
Voltage 50-520V AC(L-L),30-300V AC(L-N)
output 1 Relay (No-C-NC) 10A,230V AC (resistive load)
2 relay(optional)
Parameter tripping facility Over Voltage          Over Frequency           Phase loss               Asymmetry
Under Voltage       Under Frequency        Phase sequence     Netural loss
Supply 230V AC ±10%,50Hz  / 50 to 520V AC, 50/60Hz
Dimension(HxWxD) 96x96x43 /72x72x45



Usually dispatched within 4 working days

Warranty : 1 year cover { not valid if found fire burnt or damaged }

Additional information


VMR-13, VMR-23
