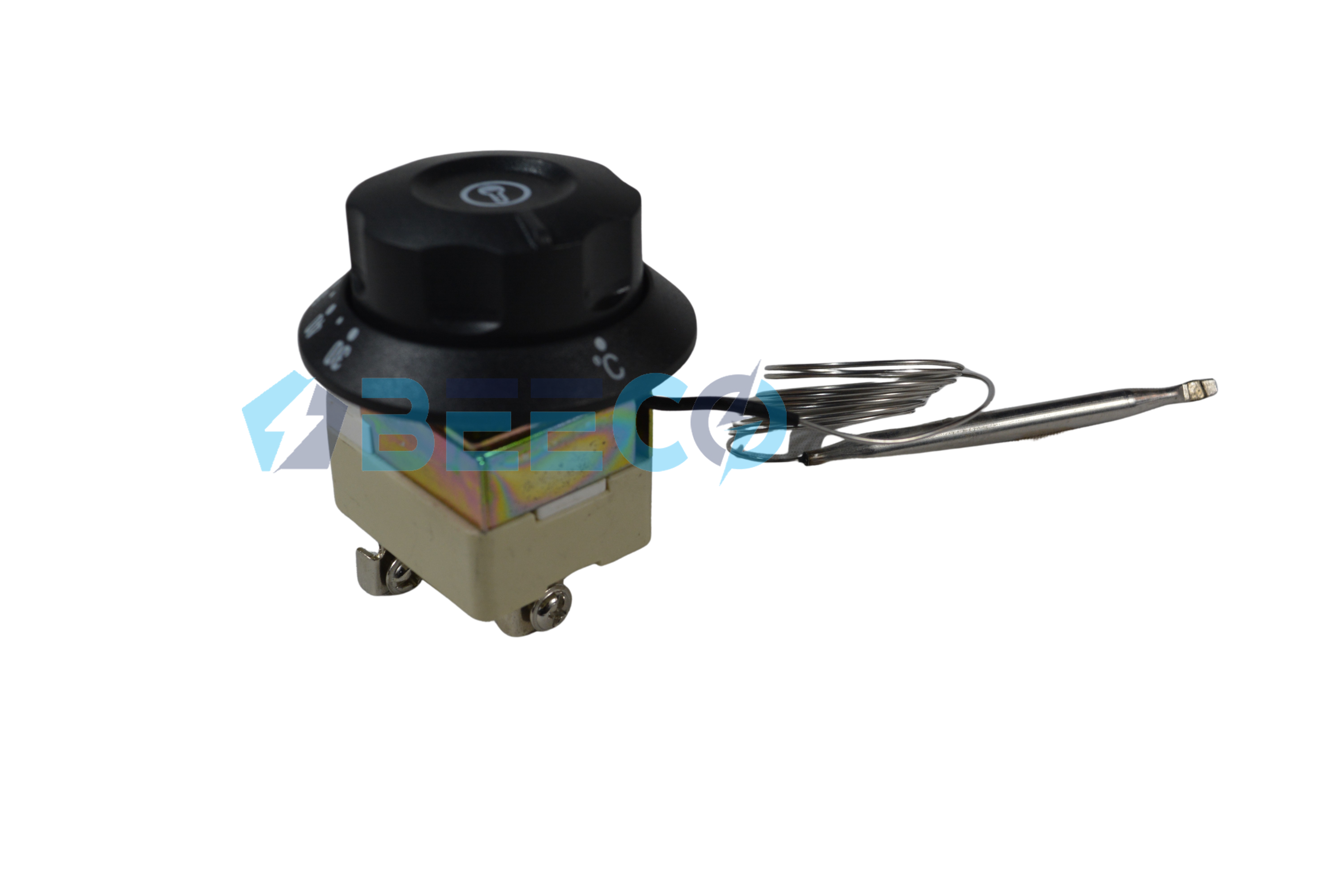

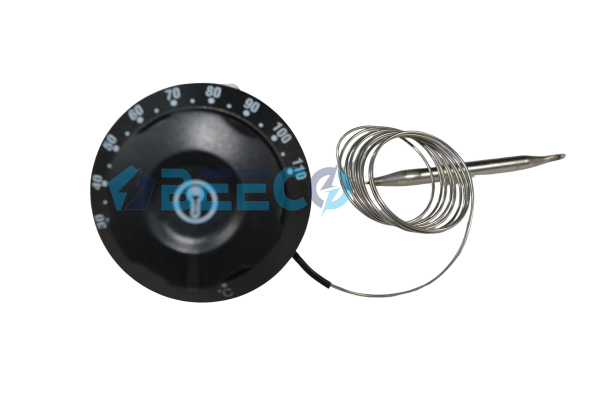

Thermostat Capillary type 30-110 degree Celsius 16 ampere
₹250.00
The BEECO Capillary Type Thermostat with a temperature range of 50 to 300 degrees Celsius is designed for precise temperature control in a variety of applications. Operating at a current capacity of 15 amperes and a voltage of 220 volts, this thermostat efficiently manages power distribution to connected devices.
Featuring a capillary length of 1 meter made from stainless steel 304, this thermostat offers durability and flexibility in installation. The stainless steel construction ensures resistance to corrosion and mechanical stress.
Manufactured by BEECO, a trusted name in electrical components, this capillary type thermostat comes with a 1-year replacement warranty, subject to specific terms and conditions. The warranty covers replacements for valid issues, while excluding cases of breakage, fire damage, or broken capillaries.
Engineered for reliability and accuracy, the BEECO Capillary Type Thermostat is essential for maintaining controlled temperature levels in various systems that require higher temperature ranges. Its sturdy construction and warranty make it a reliable choice for scenarios demanding precise and consistent temperature regulation.
- Description
- Additional information
Description
Thermostat capillary type 50-300 degree Celsius MODEL NO : BE 88
30-110 degree Celsius
16 ampere 220 volt
Capillary length 1mtr
Capillary moc : stainless steel 304
Base : Ceramic
BEECO warranty cover : 1 year replacement { no valid if product found broken or fire burnt or broken capillary }
Made by BEECO.
A capillary thermostat is a mechanical temperature control device used to regulate temperature in industrial and commercial equipment. It operates using a fluid-filled sensing bulb connected to a capillary tube, which responds to temperature changes and actuates an internal switch.
This model is rated for 12 Amps at 220 VAC and provides adjustable temperature control within a range of 30°C to 110°C, making it suitable for medium-temperature applications.
⚙️ Working Principle
The thermostat works on the principle of thermal expansion of fluid:
- The sensing bulb is placed in the area where temperature needs to be controlled.
- As temperature rises, the fluid inside the bulb expands.
- This pressure travels through the capillary tube to a diaphragm or bellows.
- The internal mechanism actuates a switch (ON/OFF) at the set temperature.
- When temperature drops, the fluid contracts and the switch resets.
🔩 Key Specifications
- Type: Capillary (Remote sensing) thermostat
- Voltage Rating: 220 VAC
- Current Rating: 12 Amps
- Temperature Range: 30°C to 110°C
- Control Type: Mechanical, adjustable dial
- Sensing Element: Fluid-filled bulb with capillary tube
- Mounting: Panel or surface mount
✅ Features
- Accurate and reliable temperature control
- Remote sensing via capillary bulb
- Easy temperature adjustment using dial knob
- Durable mechanical construction (no electronics required)
- Suitable for continuous operation
- Compact and easy to install
🏭 Applications
- Electric ovens and furnaces
- Water heaters and boilers
- Industrial dryers
- HVAC systems
- Food processing equipment
- Plastic and chemical processing units
🔌 Basic Wiring Concept
- The thermostat is connected in series with the load (heater).
- When temperature reaches the set point, it cuts off power to the heater.
- When temperature drops below set point, it restores power.
⚠️ Precautions
- Do not bend or damage the capillary tube.
- Ensure proper placement of sensing bulb for accurate readings.
- Do not exceed rated voltage/current (12A, 220VAC).
- Keep away from mechanical stress and vibration.
Additional information
| Weight | 1 kg |
|---|
