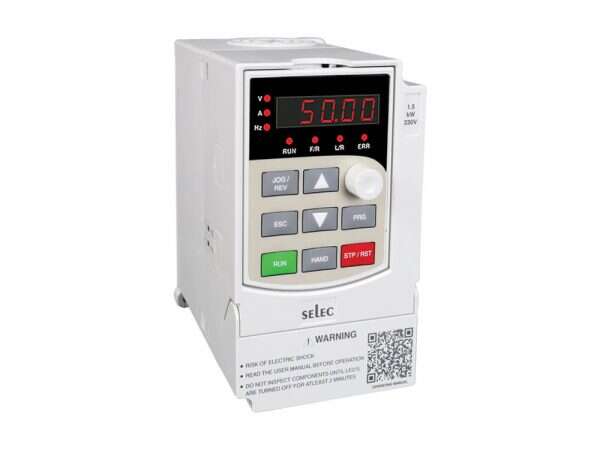

Selec FD9-3-050-C-CE


FD9-3-050-C-CE, a high-performance AC motor drive engineered to optimize motor control for industrial applications. With its comprehensive range of features, this motor drive offers efficient and reliable performance to enhance operational processes.

Operating on a three-phase 415V input voltage with a frequency range of 50/60 Hz, the FD9-3-050-C-CE is capable of handling a motor capacity of 5HP/3.75KW. The motor drive provides three control modes: V/F Control, Sensorless Vector Control (SVC), and Speed Sensor Vector Control (FVC), offering flexibility in control strategies.

The frequency control range spans from 0 Hz to an impressive 5000 Hz, allowing precise speed adjustments across a wide range of applications. The acceleration and deceleration times can be customized, with four available settings, ranging from 0.1 to 6000.0 seconds, ensuring smooth and controlled transitions.

The motor drive is designed to handle overloads effectively, accommodating 150% of the rated current for 1 minute and 180% of the rated current for 3 seconds, enhancing performance under varying load conditions.

Safety features include protection against over current, over voltage, under voltage, overheating, overload, and input phase loss, ensuring reliable operation and system protection. The motor drive is designed with an IP20 ingress protection rating, offering protection against solid objects.

The FD9-3-050-C-CE operates effectively within a temperature range of -10°C to +40°C and humidity below 90%RH (non-condensing). Its working altitude is specified as lower than 1000m.

The FD9-3-050-C-CE motor drive presents a comprehensive solution for motor control with a range of control modes, frequency control capabilities, protection features, and robust performance. It stands as a valuable component in industrial setups, optimizing motor control for various applications.



AC Input Voltage Range Three phase 415 V ; 50 Hz / 60 Hz , 5HP/3.75KW
Control Mode V/F control, Sensorless vector control (SVC), Speed Sensor vector control (FVC)
Frequency Control Range 0 Hz~5000 Hz
Acc./Dec. Time 0.1 ~ 6000.0 Sec; four acceleration and deceleration time setting available
Overload Capacity 150% rated current for 1 minute, 180% rated current for 3 seconds
Protection functions Over current , over voltage , under voltage , overheating , overload , Input phase loss
Ingress Protection IP20(In the selection of state display unit or the keyboard state)
Working Temperature -10℃~+40℃, Humidity : <90%RH, no condensation, Altitude: Lower than 1000m

Additional information

Weight 4 kg
