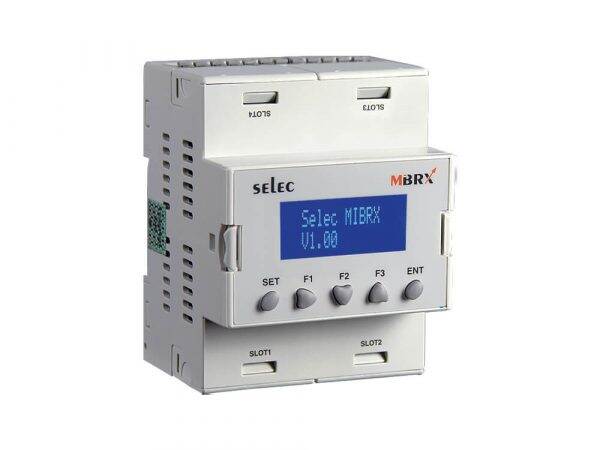

MiBRX 4M (MiBRX-4M-1-0-0-230V)

3,085.00

MiBRX 4M (MiBRX-4M-1-0-0-230V) offers compact and efficient control. With LED/LCD display options, it’s adaptable to your preference. Operating at 230VAC/24VDC, it suits various power sources. Compact at 70(W) x 90(H) x 66.4(D)mm, it optimizes space. Featuring 4+1 digital inputs, including 1 FI, 1 AI-V, and NTC, it supports diverse sensors. For analog inputs, it offers 1 V(0-10V) and options based on IO card selection. Similarly, digital and analog outputs align with IO card capabilities. Equipped with an RTC and Time Switch Function, it ensures precise scheduling.

With 240Kb code memory and RS485 Modbus RTU Protocol, it facilitates seamless communication. With 4 slots and 5kHz counting frequency, it’s a versatile solution. Designed for Din Rail mounting, it provides easy installation. In summary, the MiBRX 4M combines compact dimensions, diverse inputs/outputs, and reliable communication for efficient control.

Category:

Description

Display Type LED Display/LCD Display
Supply Voltage 230VAC/24VDC
Size 70(W) x 90(H) x 66.4(D)mm
Digital Inputs 4+1* ,(INCL 1FI, 1AI-V), NTC
Analog Inputs 1 V(0-10V) + As per IO Card Selection
Digital Outputs As per IO Card Selection
Analog Outputs As per IO Card Selection
No. of Slots 4
RTC With Time Switch Function Yes
Code Memory 240Kb
Communication Interface RS485 Modbus RTU Protocol (Master – Slave )
Expansion No
Mounting Type Din Rail
FI / Maximum Counting Frequency 1( 5kHz)

Additional information

Weight 1 kg
