MRJ4M-QUAD

6,669.00

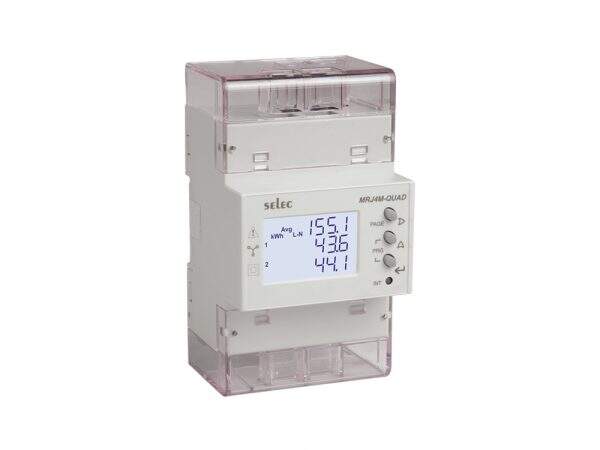

MRJ4M-QUAD features an LCD display with backlight, configured as 1 row of 4 digits and 2 rows of 7 digits. It accommodates 3-phase 4-wire and 1-phase 2-wire electrical connections. This device, with a power consumption of 8VA max, acts as a monitor for electrical parameters of up to 4 loads (3-phase) and 12 loads (1-phase). It operates self-powered and supports measurements of power (Active, Reactive, Apparent) and energy (Active, Reactive, Apparent). Communication occurs via RS485 and MODBUS RTU protocols. CT Primary is adjustable from 1A to 10kA, while CT Secondary is 330mV through Plug-n-Wire CT output. PT Primary spans 100 to 10kV, and PT Secondary ranges from 100V to 500V AC (L-L). The rated input voltage is 60 to 300V AC (L-N) and 104 to 520V AC (L-L). The supply voltage is 60 to 300V AC, self-supplied (V1, N), at 45/65Hz. With dimensions of 70 x 90mm, it’s designed for Din Rail mounting and holds CE RoHS certification.

Description

Display Type LCD with Backlight
Display Configuration 1 row of 4 digits, 2 rows of 7digits
Electrical Connection 3Ø – 4 wire, 1Ø – 2 wire
Type of Output NA
Power Consumption 8VA Max
Features Monitors Electrical Parameters for 4 loads (3Ø) & 12 loads (1Ø), Self Powered, Power (Active, Reactive, Apparent), Energy (Active, Reactive, Apparent)
Communication Protocol RS485 and MODBUS RTU
CT Primary 1A to 10kA (Programmable for any value)
CT Secondary 330mV through Plug-n-Wire CT output
PT Primary 100 to 10kV (Programmable for any value)
PT Secondary 100V to 500V AC (L – L) (Programmable for any value)
Rated Input Voltage 60 to 300V AC (L – N), 104 to 520V AC (L – L)
Supply Voltage 60 to 300V AC, Self – Supplied (V1, N), (45/65Hz)
Size 70 x 90mm
Mounting Type Din Rail Mount
Certification CE RoHS

Additional information

Weight 0.5 kg
