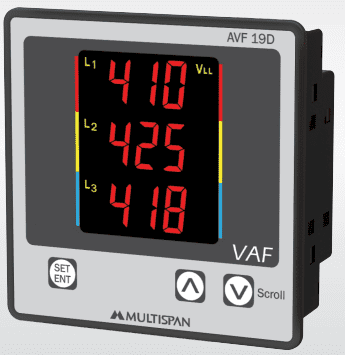

Multispan AVF-19D VAF METER
₹1,485.00
- Description
- Additional information
Description
This is VAF meter and the model no is AVF-19D. Voltage and Current input . CT Selectable up to 4000/5 . 1 Relay for Set KW . Separate display for Amp indication . Wiring System: 3Ø-4W, 3Ø-3W,1Ø-2WLoad Hour , RPM, Phase sequence by LED indication
| Model Name/Number | AVF-19D |
| Pannel cutout | 92×92 |
| Input signal | 3∅4 Wire/3∅3Wire/1 ∅2wire∅4 Wire |
| Voltage | Primary 30 to 300V AC (L-N) Secondary PT : 50 to 520V AC (L-L) |
| Current | Primary CT : 9999A Secondary CT : 5A |
| Parameter | Average Voltage (L-N) Average Voltage (L-L) Frequency Load Hour/No load Hour RPM |
| accuracy | class 0.5 |
| Supply | 230V AC ±10%,50Hz |
| Dimension (HxWxD) | 96x96x43 |
Usually dispatched within 4 working days
Warranty : 1 year cover { not valid if found fire burnt or damaged }
Additional information
| Weight | 1 kg |
|---|
