Description

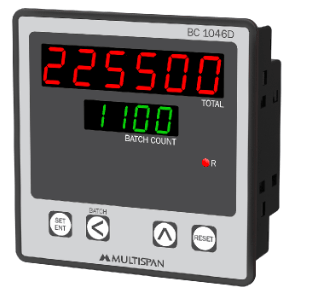

This is Batch Counter and the Model no is BC-1046D .  Batch counter in all sizes 96x 96, 72x 72, 48x 48 panel mount  . 6+4 Digit , 7 segment LED  . NPN/PNP Proxy , Micro-switch,
Auto/Manual reset . Up to 2 set point , 2 relay . Memory retention . Buzzer output



Model Name/Number BC-2046
Pannel Cutout(mm) 68×68
Input NPN/PNP Proximity switch/Micro Switch (Configurable)
230V AC Pulse (Factory set)
Range Upper Display Range (0-999999 count)
Lower display range(0-9999)
Output 1relay+Buzzer
Reset Auto reset/Manual reset
Memory Non-Volatile Memory
Supply 100-270V AC(SMPS),50/60Hz
Dimension(HxWxD) 72x72x50





Usually dispatched within 4 working days

Warranty : 1 year cover { not valid if found fire burnt or damaged }

Additional information

Weight 1 kg

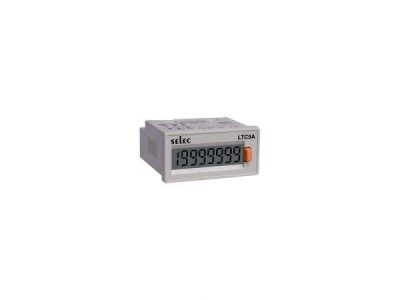

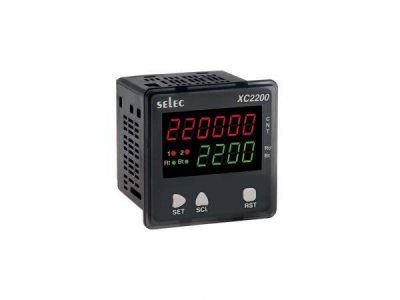

Related Products
