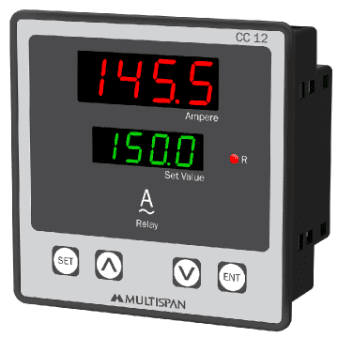

This is Single Phase – Current Controller and  the model no is CC-12.


Model Name/Number  CC-12
Pannel Cutout(mm) 92×92
Input Current 5A AC Direct )CT ratio selectable 5/5A to 100/5A)
output 1Relay (No-C-NC) 5A , 230V AC (resistive load)
tripping Facility High/low /inband/outband/Absolute outband Alarm (Configurable)
Accuracy class 0.5
Supply 100-270V AC(SMPS), 50/60Hz,Approx 4VA
Dimension(HxWxD) 96x96x52



Usually dispatched within 4 working days

Warranty : 1 year cover { not valid if found fire burnt or damaged }

Additional information

Weight 1 kg
