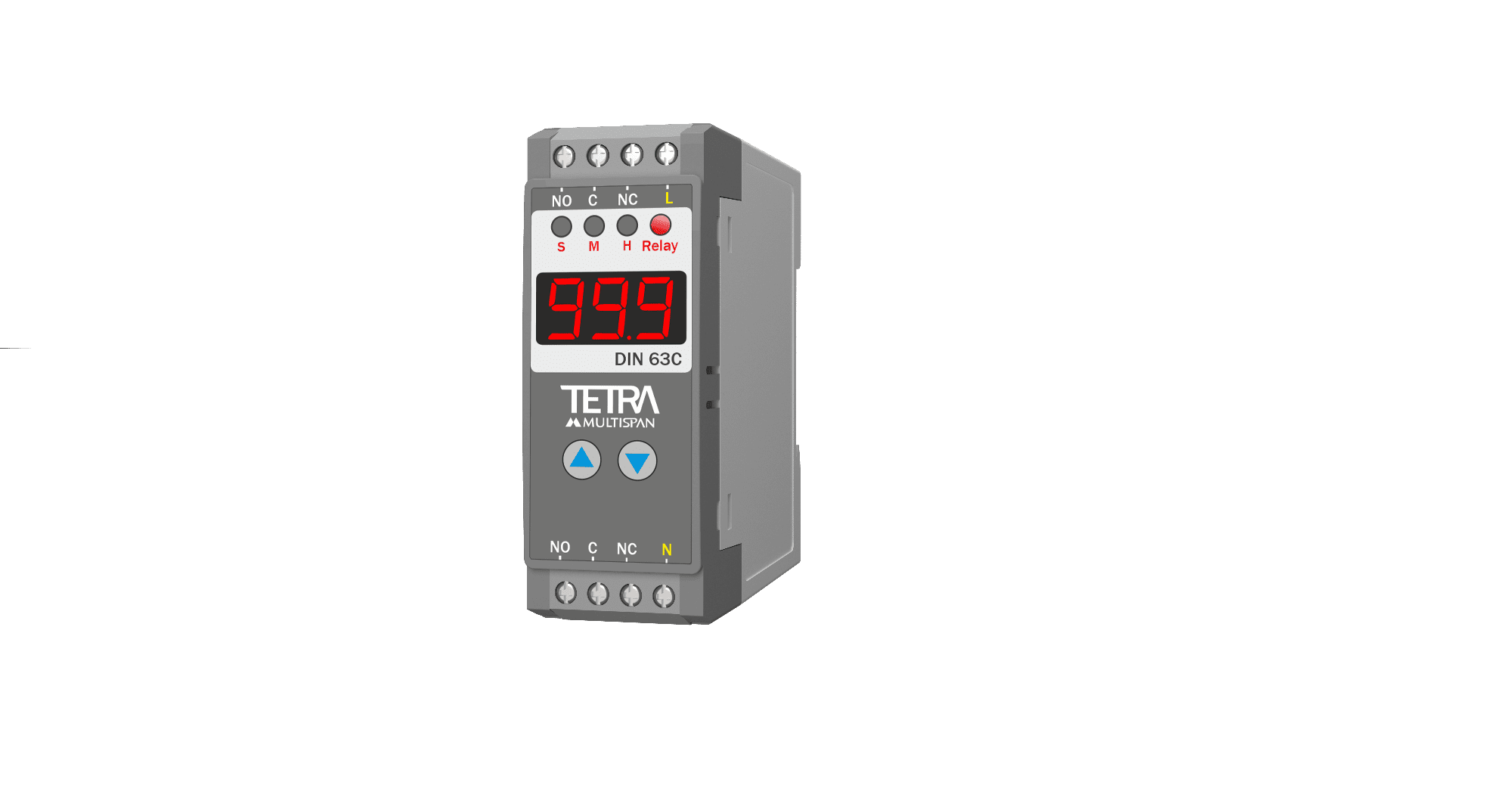

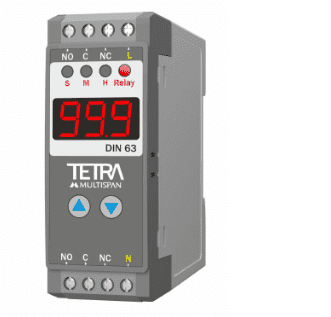

This is Timer: On delay & Cyclic and the Model no is DIN-63.    DIN Rail Digital Timer Compact & easy to program . Rail mount – with 3 Digit , 7 Segment LED Display
Digital setting by Keypad . On/off delay in DIN-63 , Cyclic mode in DIN-63C  . Timer range – Sec/Min/Hours  . 1 output relay


Model Name/Number DIN-63
Pannel Cutout(mm) Din rail mounting
Input Star Pulse Micro Switch/Limit Switch/Proximity (Configurable)
Range 999/99.9/9.99 Hour/Min/sec(Configurable)
Output  1 Relay 2C/O 5A,230V AC (Resisitve load) or SSR Drive O/P 12V max 20mA DC (Any onr Factory set)
Operation Mode Delayed On / Delayed OFF (Configurable)
Counting  Direction Up/Down (Configurable)
Memory  Yes/No (Configurable)
Supply 100-270V AC/DC(SMPS),50/60 Hz
Dimension(HxWxD) 76x28x85



Usually dispatched within 4 working days

Warranty : 1 year cover { not valid if found fire burnt or damaged }

Additional information

Weight 1 kg
