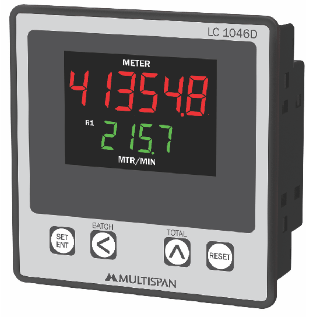

Multispan LC-1046D Length Counter
₹1,609.00
- Description
- Additional information
Description
This is Batch Counter and the Model no is LC-1046D.6+4 Digit , 7 segment LED . NPN/PNP Proxy , Micro-switch, Encoder Pulse input . Auto/Manual reset . Up to 2 set point , 2 relay Counting direction Up/Down . Memory retention . Diameter setting parameter . RS-485 MODBUS optional
| Model Name/Number | LC-1046D |
| Pannel Cutout(mm) | 92×92 |
| Input | NPN/PNP Proximity switch (Configurable) Encoder(Factory set) |
| Range | 0-99999.9/0-999999/0-9999.99/0-999.999 Meter (configurable) |
| Output | 1relay 1C/O 5A@230V AC(Resistive load) |
| Reset | Auto reset/Manual reset facility & front and back reset |
| Memory | Non-Volatile Memory |
| MPM Range | 999.9MPM |
| Diameter | 0-9999.99mm |
| Supply | 230V AC ±10%,50Hz |
| Dimension(HxWxD) | 96x96x42 |
Usually dispatched within 4 working days
Warranty : 1 year cover { not valid if found fire burnt or damaged }
Additional information
| Weight | 1 kg |
|---|
