This is Temperature Controller With Ampere Indication and the Model no is PID-4203-1C . 7 Segment, LED Display for temperature & ampere indication  , Universal input TC/RTD + Current input   . PID/ON-OFF
Auto /Self tuning   , Heating + Cooling + Alarm output.

Model Name/Number PID-4203-1C (With CT Module)
Pannel Cutout(mm) 45×45
Input Sensor J/K/PT-100 (Configurable)
Range J(0°C to 600°C), K(0°C to 1200°C) PT-100 2Wire or 3wire (-99°C to 400°C,99.9°C to 400.0°C)
Output 3 relay 1C/0 5A,230V AC (resistive load) or 3 SSR Drive O/P 12V DC, 20mA
(Factory Set)(3 Set Point)(Heat + Cool + Alarm)

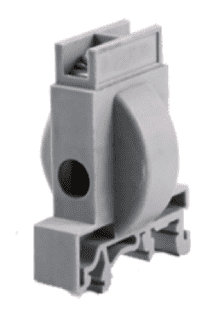

Ct Output 1 Ct (30A or 60A Rail mounting)
Supply 100-270V AC, 50/60 Hz
Accuracy ±1% of FSD
Control Action PID / ON-OFF (Configurable)
Dimension(HxWxD) 48x48x65


Usually dispatched within 4 working days

Warranty : 1 year cover { not valid if found fire burnt or damaged }

Additional information

Weight 1 kg
