Description

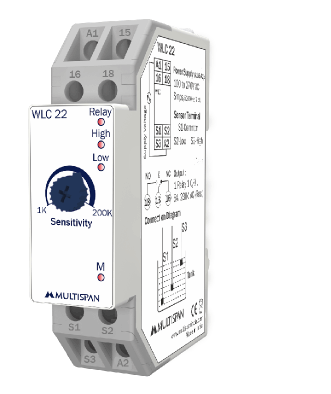

This is Water level controller and the model no is WLC-22. Trip Relay Indication . High & Low Level Indication Led . Compact & sleek design . Sensitivity Adjustable : 1K to 200K ohm
Pump protection from Dry run & Overflow condition
| Model Name/Number | WLC-22 |
| Mounting | Din rail mounting |
| Input | 3 nos.prods S1 : Common, S2 Low, S3: high |
| output | 1 relay 1C/O 5A, 230V AC (resistive load) |
| Sensitivity | 1 to 200 kilo ohms |
| Trip delay | 0.5 second (approx) |
| Power Supply | 100 to 270V AC |
| Dimension(HxWxD) | 90×22.5×67.5 |
Usually dispatched within 4 working days
Warranty : 1 year cover { not valid if found fire burnt or damaged }
Additional information
| Weight | 1 kg |
|---|
