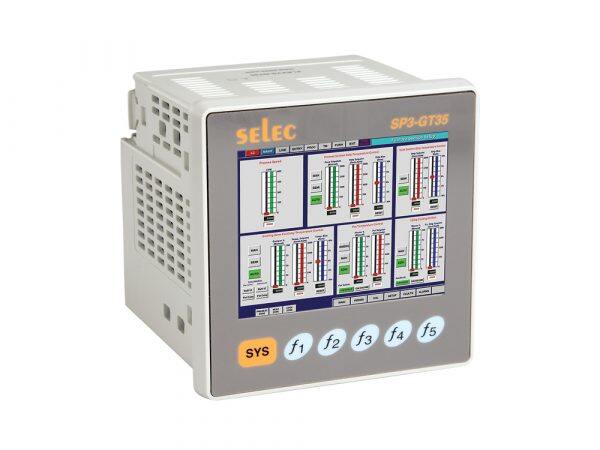

SP3-GT35

SP3-GT35 features an 8 Bit Colour LCD Backlight display and boasts 16 MB of user memory. Operating on 18-30V DC, it supports data logging with a spacious 2 GB External SD Card. The 3.5″ Resistive Touch Screen is complemented by 5 Function Keys and 1 System Key. Sized at 96 x 96 x 53mm, it offers communication through COM1 (RS232 Port) as MODBUS RTU Slave, COM2 (RS485 Port) as MODBUS RTU Master, and COM3 (RS232 Port) as ESC/PAUSE for Serial Printer (Slave). The Real-Tim

Category:

Description

Display Type 8 Bit Colour, LCD Backlight
User Memory 16 MB
Supply Voltagey 18-30V DC
Data logging 2 GB (External SD Card)
Display Configuration 3.5″ Resistive Touch Screen
Keys 5 Functions Keys + 1 System Key
Size 96 x 96 x 53mm
Communication COM1: RS232 Port, Protocol: MODBUS RTU, Configuration: Slave
COM2: RS485 Port, Protocol: MODBUS RTU, Configuration: Master
COM3: RS232 Port, Protocol: ESC/PAUSE, Configuration: Serial printer (Slave)
Real Time Clock (RTC) Yes
Certificate CE

Additional information

Weight 1 kg
