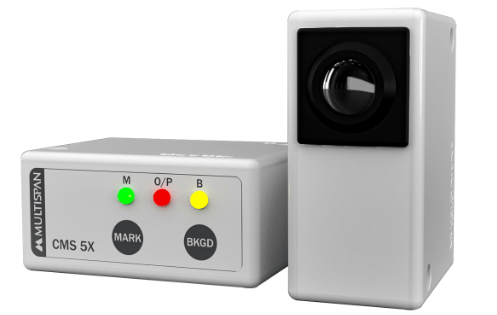

This is Color Mark Sensor-5X  and the Model no is CMS-5X.  Multicolor sensing . Scanning Distance 10 to 15 mm . Ultra Fast and Accurate Response . Compact & Sleek design
Standard mounting for easy Installation . Ambient light noise rejection for better color recognition . Scratch resistant lens for dusty applications


Model Name/Number CMS-5X
Power Supply 12V DC to 24V DC
Scanning Distance 10 to 15mm
Range Clutch on time :- 0-99.99 sec.
Light Source  Red+Green+Blue
Output NPN/PNP
Connection – Red Wire Supply 12V DC to 24VDC
Black wire GND
Green Wire PNP Output
Yellow wire NPN Output



Usually dispatched within 4 working days

Warranty : 1 year cover { not valid if found fire burnt or damaged }

Additional information

Weight 1 kg
