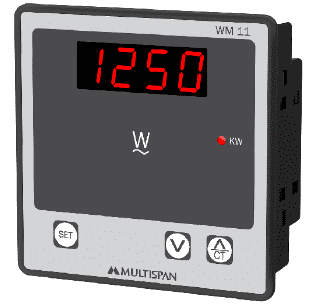

This is Single Phase AC Panel meter   and the model no is   WM-11.  2 Line , 3 Digit – 7 Segment LED Display . Voltage and Current input . CT Selectable up to 2000/5 Amps . 30.0 Amps direct available


Model Name/Number  WM-11
Pannel cutout 92×92
Input signal  1∅2 wire
Voltage 300V AC (L-N)
Current 0.5 to 5Amp (CT-Selection 5-50A)
CT Selection Secondary function 5A/1A (Configurable)
Measuring range 0 to 15kilo Watt
Accuracy  Class 0.5
Power Supply 230V AC ±10%,50Hz
Dimension (HxWxD) 96x96x42



Usually dispatched within 4 working days

Warranty : 1 year cover { not valid if found fire burnt or damaged }

Additional information

Weight 1 kg
