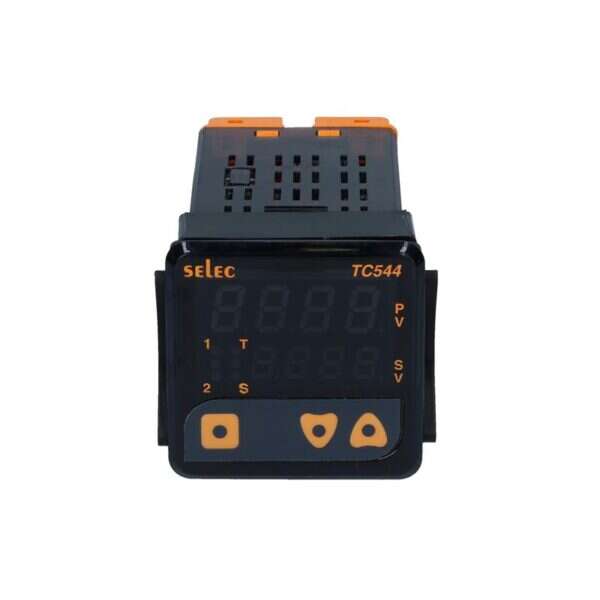

Selec TC 544 C


TC 544 C is a versatile and compact temperature controller designed to provide accurate temperature regulation in various industrial applications. Its dual display configuration, featuring both red and green LEDs, allows for easy monitoring of temperature readings and set points.

Equipped with a 4-digit dual display, the TC 544 C supports multiple sensor inputs, including TC (J, K, T, R, S) and RTD (PT100), making it suitable for a wide range of temperature measurement needs. Whether you require basic ON-OFF control or advanced auto-tune PID control, this controller offers versatile control options to match your specific requirements.

The TC 544 C features dual set points for precise temperature management, enhancing its suitability for processes that demand accurate temperature control. With a reliable 5A relay control output and a 12V SSR control output, along with an auxiliary 5A relay output, this controller ensures efficient temperature regulation within the desired range.

Measuring at a compact size of 48 mm x 48 mm and designed with a short depth, the TC 544 C can be easily integrated into control panels with limited space. It is panel-mounted and operates within a supply voltage range of 90 to 270V AC/DC. The controller is also certified with CE and RoHS, indicating its compliance with international quality and safety standards.


Red + Green Dual Display, 2 SPST Relay Output

Product: TC 544 C
  • 4 digit Dual display temperature controller
  • (TC: J, K, T, R, S/ RTD: PT100) sensor input
  • ON-OFF/Auto-tune PID control
  • Dual set point
  • 5A Relay/ 12V SSR control output
  • Auxiliary 5A Relay output
  • 48mm x 48 mm compact size
  • Short depth
  • Heat-Cool PID and Dwell timer functions
  • Panel mount
  • 90 to 270V AC/DC supply voltage
  • CE, RoHS certified

Additional information

Weight 1 kg
