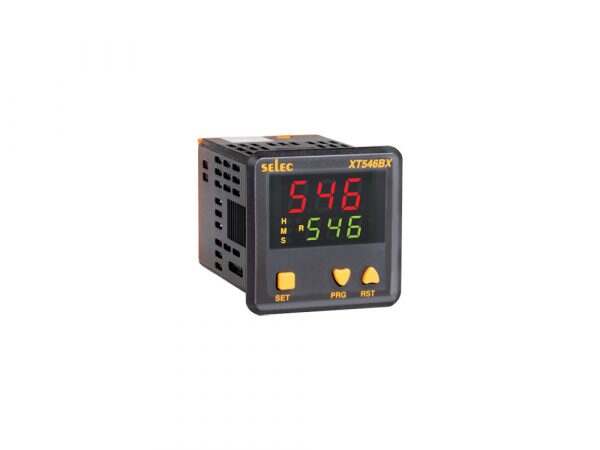

Selec XT546BX


The XT546BX is an advanced and versatile timing relay designed for precise timing control and reliability.

The XT546BX timing relay offers a comprehensive set of features suitable for applications requiring precise timing control and versatility. The dual LED display ensures accurate monitoring of both set values and elapsed time.

With memory retention, multiple operating modes, and accurate timing, the XT546BX is a reliable solution for scenarios where reliability and precision are essential.

The presence of 2 C/O SPDT relay contacts enables the relay to control two electrical circuits, enhancing its flexibility and applicability.

In summary, the XT546BX timing relay is an advanced solution for applications demanding precise timing control, accuracy, and adaptability. Its compact design, versatile features, and impending CE certification make it a suitable choice for automation and control panels.



Display Type 7 Segment LED, Dual Display
Display Configuration 3+3 Digits
Feature Memory Retention
Relay Contact 2 C/O SPDT
Range 9.99 / 99.9 / 999sec, 9.59min sec, 99.9 / 999min, 9.59hr : min, 99.9 / 999 hr
Operating Modes ON Delay / Interval / Cyclic ON First / Cyclic OFF First
Reset Front, Remote, Power Interruption
Accuracy ± 0.05% or 50 ms (Whichever Is Greater)
Counting Direction Up / Down
Supply Voltage 85 to 270V AC , 24V AC / DC
Size 48 x 48mm
Mounting Type Panel Mount
Certification CE in Process

Additional information

Weight 1 kg
